Cutterbar mowers

Small cutterbar mowers

110

• Gearbox
  1-speed (1 forward)
• Differential
  no
• Fwd/Rev shuttle
  no
• Transmission
  with gears in oil bath
• Clutch
  direct engagement
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  no
• Power take-off
  independent at 1017 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  70 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1540|L2:740|L3:800|H1:990|W1:920|W2:400, $1-speed (1 forward) with 3.50-6'' wheels$1:2.30

Small cutterbar mowers

120 S

• Gearbox
  2-speed (1 forward + 1 reverse)
• Differential
  no
• Fwd/Rev shuttle
  no
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height- and width-adjustable with anti-vibration device
• Brakes
  no
• Power take-off
  independent at 1004 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  80 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1465|L2:600|L3:865|H1:1150|W1:920-1220|W2:465, $2-speed (1 forward + 1 reverse) with 4.00-8'' wheels$1:3.07|1R:1.18

Cutterbar mowers for intensive use

130 S

• Gearbox
  4-speed (2 forward + 2 reverse)
• Differential
  no
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height- and width-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  105 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1670|L2:900|L3:770|H1:1250-300|W1:1270-950|W2:450, $4-speed (2 forward + 2 reverse) with 4.00-8'' wheels$1:1.11|1R:1.05|2:2.32|2R:2.20

Cutterbar mowers for intensive use

140

• Gearbox
  7-speed (4 forward + 3 reverse)
• Differential
  no
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  no
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  115 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1660 (1665)|L2:900 (950)|L3:760|H1:1250-400|W1:950-1450|W2:437, $7-speed (4 forward + 3 reverse) with 4.00-8'' wheels$1:1.05|1R:1.11|2:2.20|2R:2.32|3:3.63|3R:3.83|4:11.38

Cutterbar mowers for intensive use

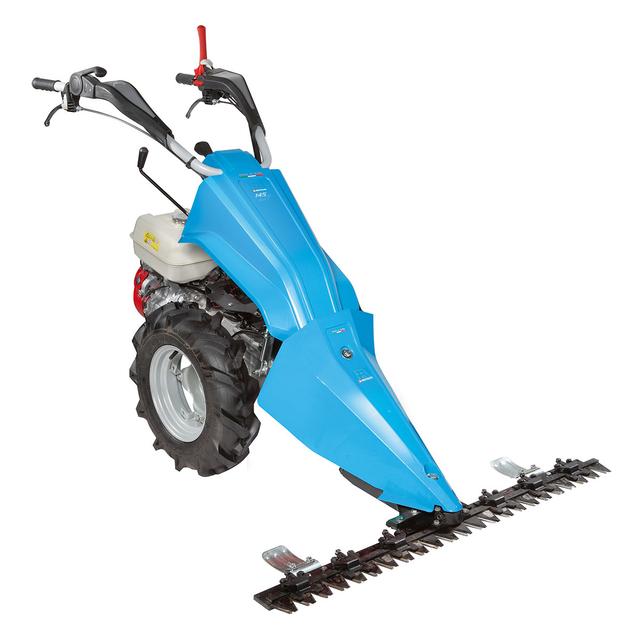

145 S

• Gearbox
  6-speed (3 forward + 3 reverse)
• Differential
  no
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  115 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1660 (1665)|L2:900 (950)|L3:760|H1:1250-400|W1:950-1450|W2:437, $6-speed (3 forward + 3 reverse) with 4.00-8'' wheels$1:1.05|1R:1.11|2:2.20|2R:2.32|3:3.63|3R:3.83

Professional cutterbar mowers

141

• Gearbox
  7-speed (4 forward + 3 reverse)
• Differential
  yes
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  135 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1660 (1665)|L2:900 (950)|L3:760|H1:1255-405|W1:900-1600|W2:445-586, $7-speed (4 forward + 3 reverse) with 4.00-10'' wheels$1:1.20|1R:1.27|2:2.57|2R:2.66|3:4.17|3R:4.41|4:13.05

Professional cutterbar mowers

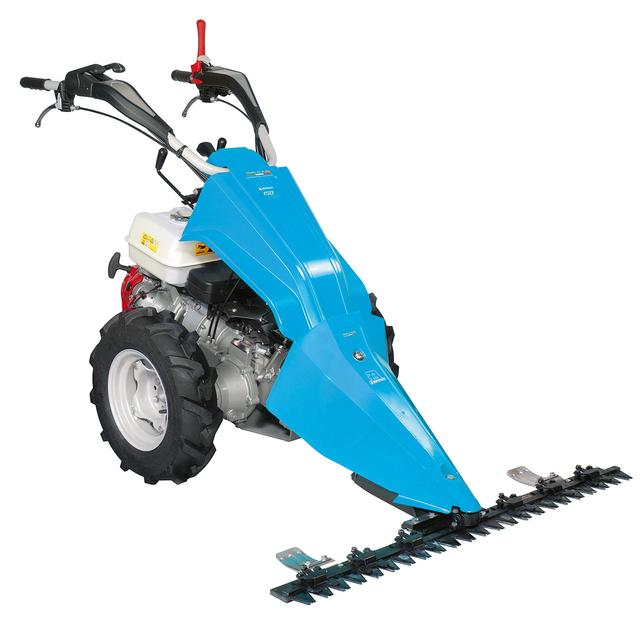

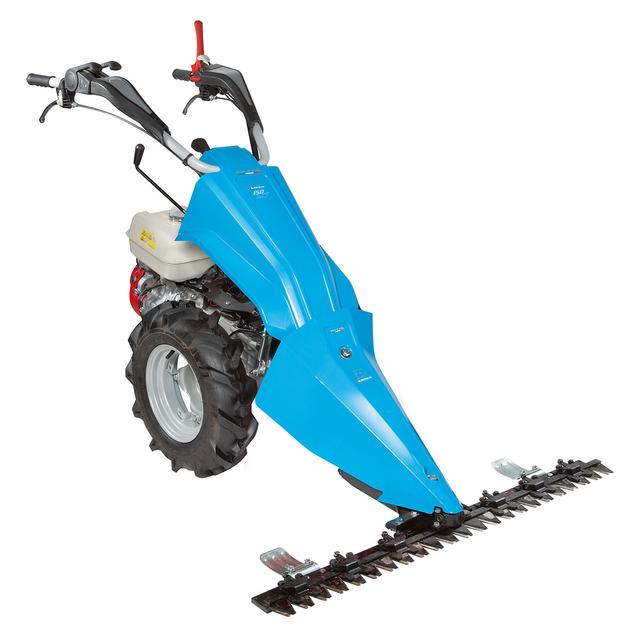

150 S

• Gearbox
  6-speed (3 forward + 3 reverse)
• Differential
  yes
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  135 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1660 (1665)|L2:900 (950)|L3:760|H1:1250-405|W1:900-1600|W2:445-586, $6-speed (3 forward + 3 reverse) with 4.00-10''$1:1,20|1R:1,27|2:2,57|2R:2,66|3:4,17|3R:4,41

Professional cutterbar mowers

150 MS

• Gearbox
  6-speed (3 forward + 3 reverse)
• Differential
  steering clutches controlled in combination with the brakes
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  175 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  $6-speed (3 forward + 3 reverse) with 5.00-10''$1:1.27|1R:1.34|2:2.72|2R:2.82|3:4.42|3R:4.68, L1:1765|L2:950|L3:860|H1:1260-410|W1:1270-1620|W2:715-800
