Cutterbar mowers for intensive use 145 S_1 | BertoliniCutterbar mowers for intensive use 145 S_2 | BertoliniCutterbar mowers for intensive use 145 S_3 | BertoliniCutterbar mowers for intensive use 145 S_4 | Bertolini
Cutterbar mowers for intensive use 145 S_1 | Bertolini
Cutterbar mowers for intensive use 145 S_2 | Bertolini
Cutterbar mowers for intensive use 145 S_3 | Bertolini
Cutterbar mowers for intensive use 145 S_4 | Bertolini

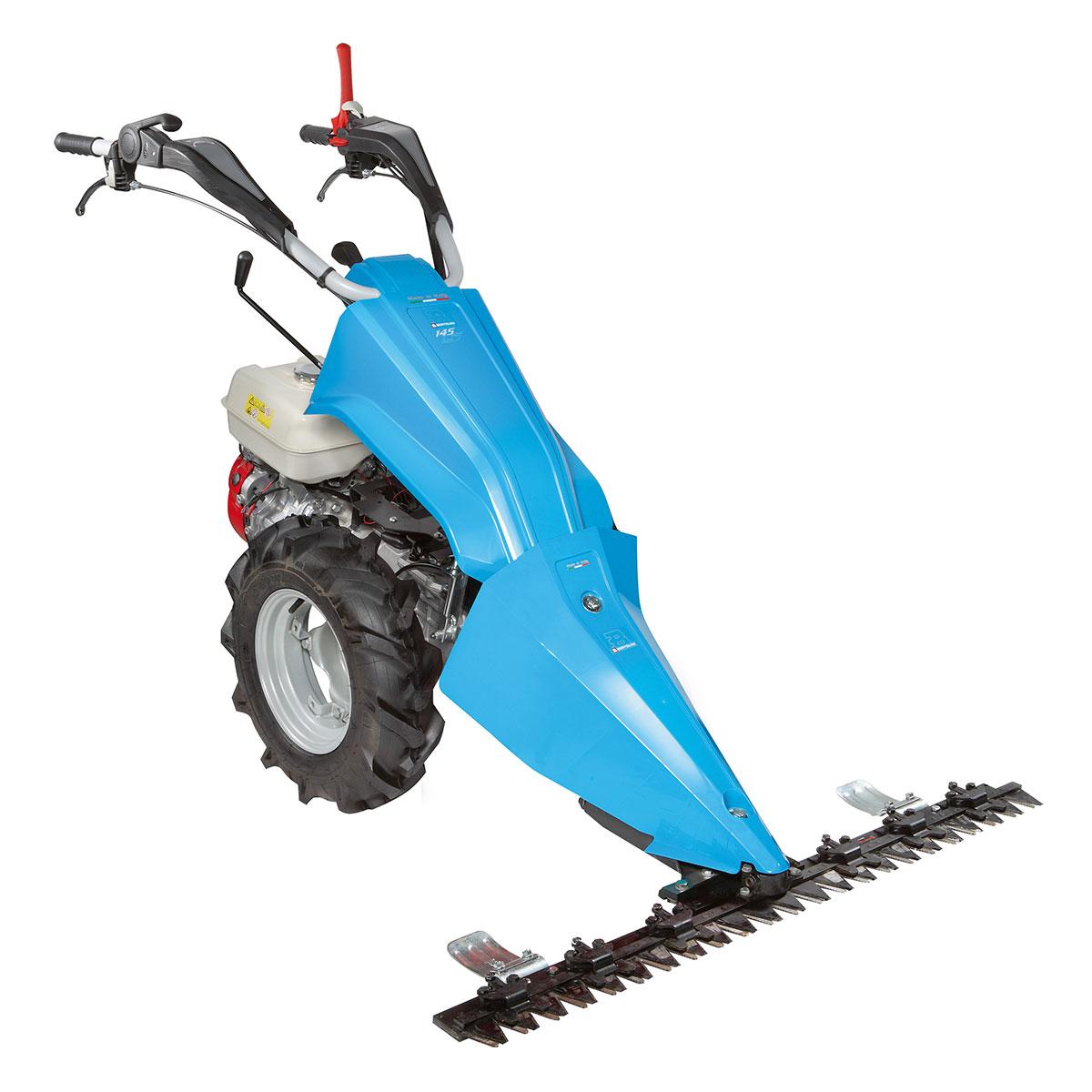

Cutterbar mowers for intensive use

INTENSIVE

145 S

INTENSIVE
Power supply Engine Model Displacement Power* Starting Note Code
GX 160 OHV 163 cm³ 4.8 HP recoil start   68919209E5
K 900 H OHV  252 cm³ 7.0 HP recoil start   68919211E5
CH 270 OHV 208 cm³ 7.0 HP recoil start   68919203E5
GX 270 OHV 270 cm³ 8.4 HP recoil start   68919200E5
CH 395 OHV  277 cm³ 9.5 HP recoil start   68919205E5
K 7000 HD  349 cm³ 6.7 HP recoil start

as standard with ballast for

oil-immersed drive

68919213E5


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Safety, ergonomics and styling. Every detail is aimed at assuring safe and accurate work operations: with features such as the adjustable height handlebars, rapid reverse shuttle, QuickFit system and transmission with oil-immersed drive, all reflecting the painstaking attention dedicated to the operator.

Gearbox
6-speed (3 forward + 3 reverse)
Differential
no
Reverse gear

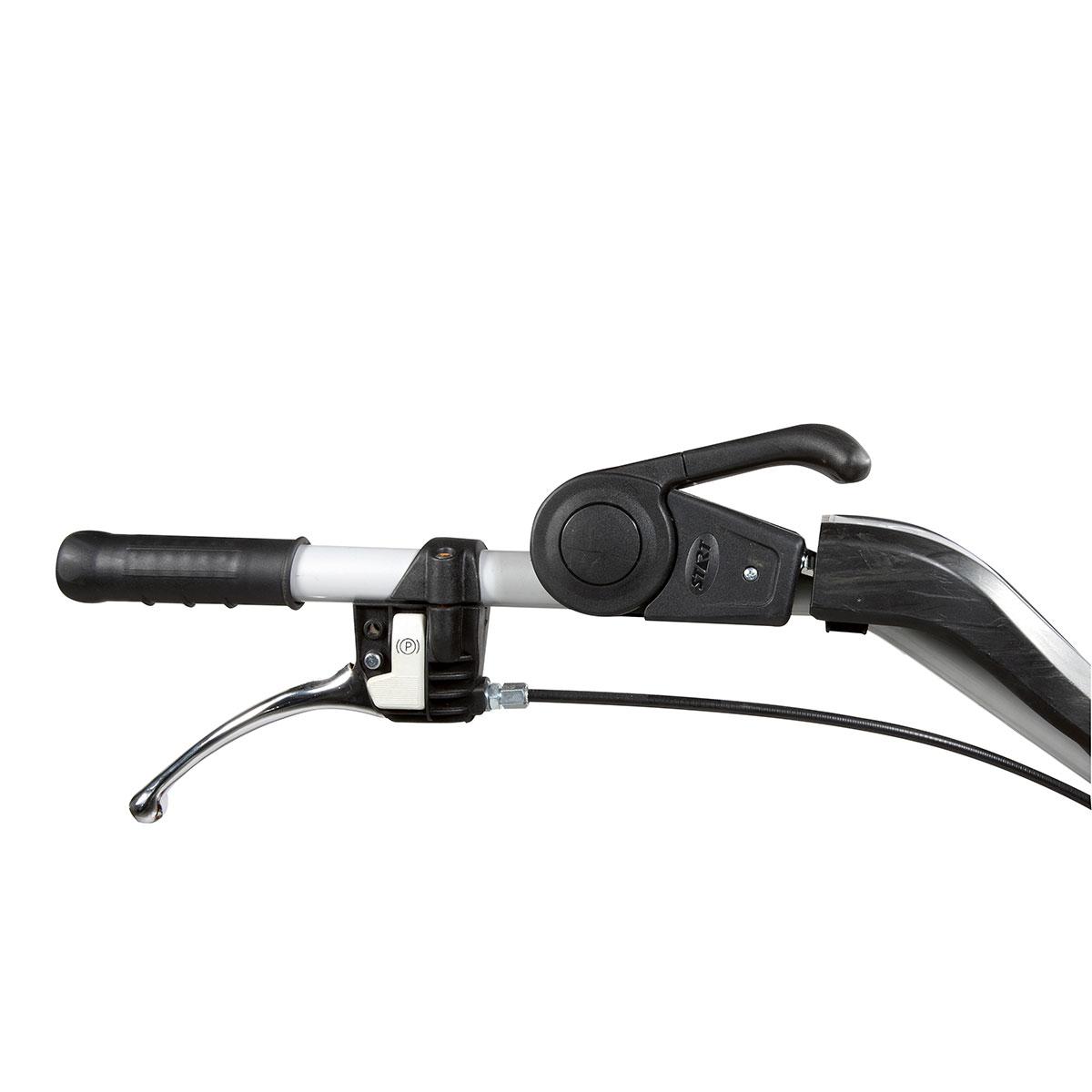

yes, control lever on handlebar

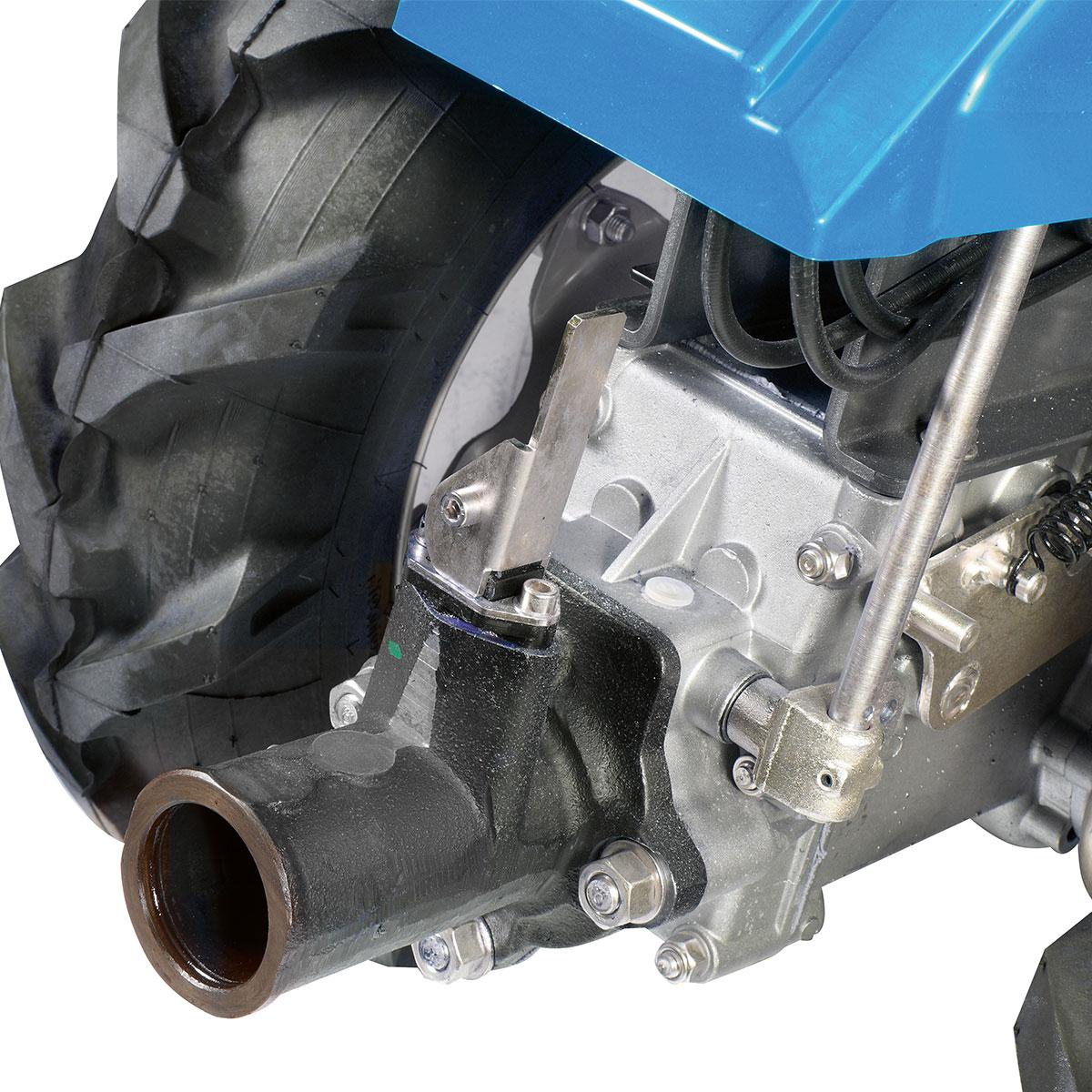

Transmission
with gears in oil bath
Clutch
dry multidisc

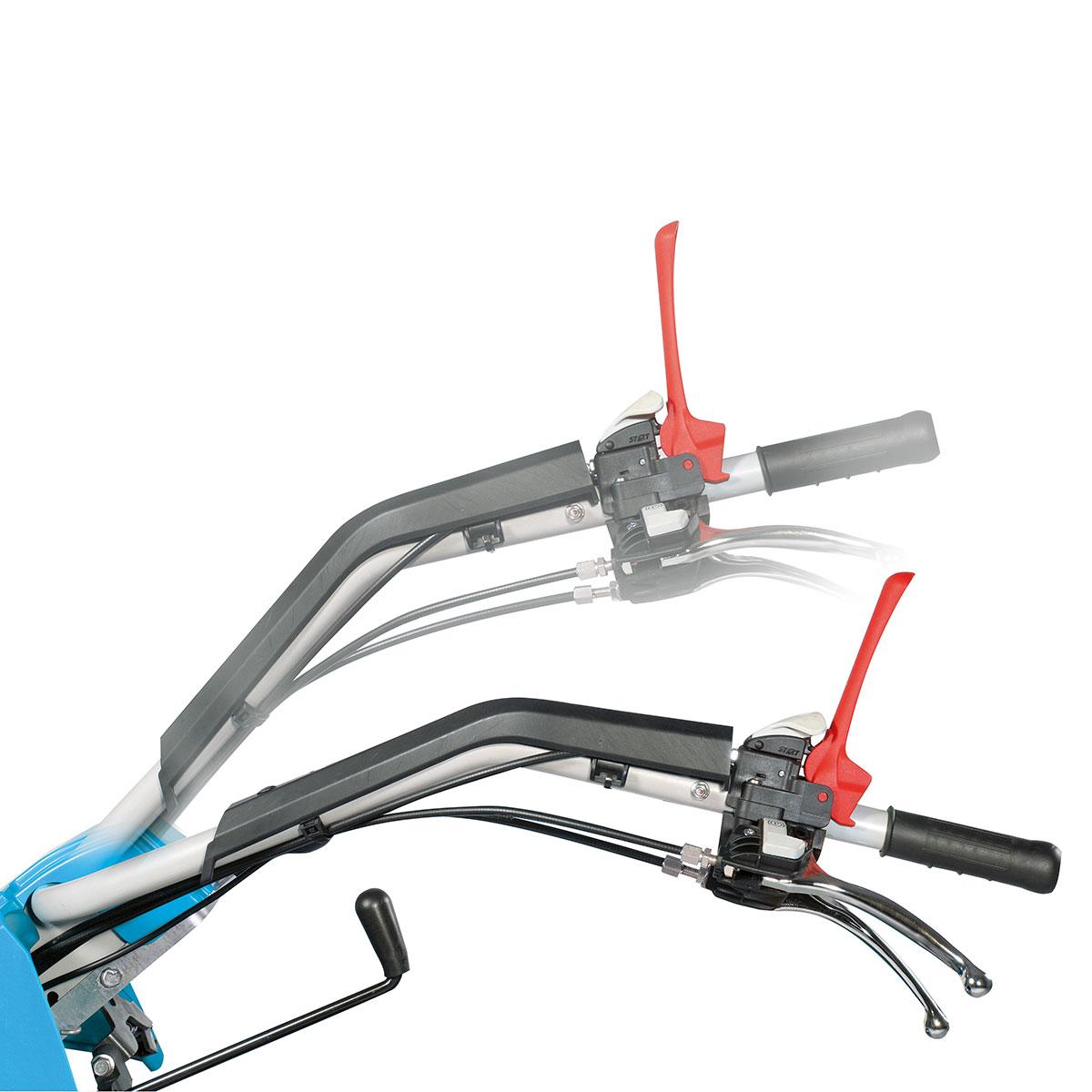

Handlebars
height-adjustable with anti-vibration device
Brakes
yes
Power take-off
independent at 973 rpm
Accessories installation
Integral QuickFit supplied as standard
Weight
115 kg (with wheels, bar drive and cutter)

Gearbox / Speed (km/h) with wheels:

6-speed (3 forward + 3 reverse) with 4.00-8'' wheels

11.05
1R1.11
22.20
2R2.32
33.63
3R3.83

Dimensions (mm)

Dimensions (mm) | Bertolini
L11660 (1665)
L2900 (950)
L3760
H11250-400
W1950-1450
W2437
Tough Tech | Bertolini
Tough Tech
EHS | Bertolini
EHS
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
