Mowing down plants, cutting fodder and grass for hay making

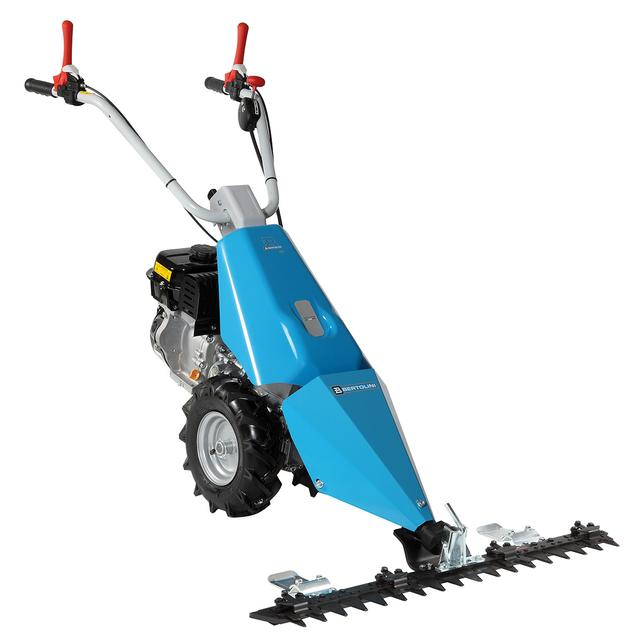

Small cutterbar mowers

110

• Gearbox
  1-speed (1 forward)
• Differential
  no
• Fwd/Rev shuttle
  no
• Transmission
  with gears in oil bath
• Clutch
  direct engagement
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  no
• Power take-off
  independent at 1017 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  70 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1540|L2:740|L3:800|H1:990|W1:920|W2:400, $1-speed (1 forward) with 3.50-6'' wheels$1:2.30

Small/for private use two wheel tractors

401 S

• Displacement
  163 cm³ - 182 cm³
• Gearbox
  2-speed (1 forward + 1 reverse)
• Differential
  no
• Reverse gear
  no
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height- and width-adjustable, 180° reversible, with vibration-damping device
• Brakes
  no
• Power take-off
  independent at 1004 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Towing hitch
  optional
• Cowling
  no
• Weight (with diesel engine, rotor and wheels)
  75 kg
• SchedaTecnica
  With Cutterbar Mower, With Two Wheel Tractor
• Dato Scheda Tecnica
  L1:1440|L2:470|L3:970|H1:230-1050|W1:380|W2:350-600, L1:1465|L2:600|L3:865|H1:345-1150|W1:380|W2:900-1117, $2-speed (1 forward + 1 reverse) with 4.00-8'' wheels$1:1.18|1R:3.07, $2-speed (1 forward + 1 reverse) with 4.00-8'' wheels$1:3.07|1R:1.18

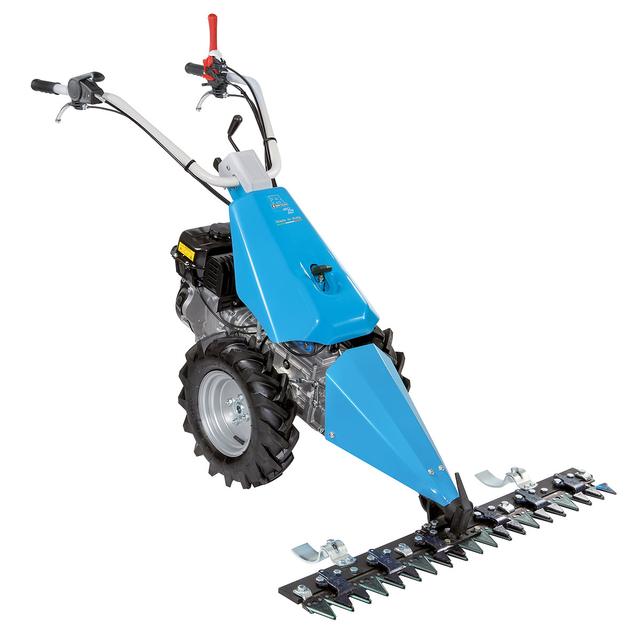

Small cutterbar mowers

120 S

• Gearbox
  2-speed (1 forward + 1 reverse)
• Differential
  no
• Fwd/Rev shuttle
  no
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height- and width-adjustable with anti-vibration device
• Brakes
  no
• Power take-off
  independent at 1004 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  80 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1465|L2:600|L3:865|H1:1150|W1:920-1220|W2:465, $2-speed (1 forward + 1 reverse) with 4.00-8'' wheels$1:3.07|1R:1.18

Cutterbar mowers for intensive use

130 S

• Gearbox
  4-speed (2 forward + 2 reverse)
• Differential
  no
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height- and width-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  105 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1670|L2:900|L3:770|H1:1250-300|W1:1270-950|W2:450, $4-speed (2 forward + 2 reverse) with 4.00-8'' wheels$1:1.11|1R:1.05|2:2.32|2R:2.20

Two wheel tractors for intensive use

405 S

• Displacement
  182 cm³ - 196 cm³
• Gearbox
  4-speed (2 forward + 2 reverse)
• Differential
  no
• Reverse gear
  yes, with handlebar lever
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height- and width-adjustable, 180° reversible, with vibration-damping device
• Brakes
  no
• Power take-off
  independent at 973 rpm
• Accessories coupling
  QuickFit (optional)
• Towing hitch
  optional
• Cowling
  no
• Weight (with diesel engine, rotor and wheels)
  116 Kg
• SchedaTecnica
  With Cutterbar Mower, With Two Wheel Tractor
• Dato Scheda Tecnica
  L1:1740|L2:550|L3:1190|H1:1250-300|W1:370|W2:600-400, L1:1670|L2:900|L3:770|H1:1250-300|W1:370|W2:1270-950, $4-speed (2 forward + 2 reverse) with 4.00-8'' wheels$1:1.05|1R:1.11|2:2.20|2R:2.32, $4-speed (2 forward + 2 reverse) with 4.00-8'' wheels$1:1.11|1R:1.05|2:2.32|2R:2.20

Two wheel tractors for intensive use

407 S

• Displacement
  196 cm³ - 270 cm³ - 252 cm³ - 349 cm³
• Gearbox
  4-speed (2 forward + 2 reverse)
• Differential
  yes
• Reverse gear
  yes, with handlebar lever
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height- and width-adjustable, 180° reversible, with vibration-damping device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  QuickFit (optional)
• Towing hitch
  yes
• Cowling
  no
• Weight (with diesel engine, rotor and wheels)
  120 kg
• SchedaTecnica
  With Cutterbar Mower, With Two Wheel Tractor
• Dato Scheda Tecnica
  L1:1780|L2:570|L3:1210|H1:1340-470|W1:370|W2:700-400, L1:1690|L2:900|L3:790|H1:1440-620|W1:370|W2:1420-950, $4-speed (2 forward + 2 reverse) with 4.00-10'' wheels$1:1.20|1R:1.27|2:2.52|2R:2.66, $4-speed (2 forward + 2 reverse) with 4.00-10'' wheels$1:1.27|1R:1.20|2:2.66|2R:2.52

Cutterbar mowers for intensive use

140

• Gearbox
  7-speed (4 forward + 3 reverse)
• Differential
  no
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  no
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  115 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1660 (1665)|L2:900 (950)|L3:760|H1:1250-400|W1:950-1450|W2:437, $7-speed (4 forward + 3 reverse) with 4.00-8'' wheels$1:1.05|1R:1.11|2:2.20|2R:2.32|3:3.63|3R:3.83|4:11.38

Cutterbar mowers for intensive use

145 S

• Gearbox
  6-speed (3 forward + 3 reverse)
• Differential
  no
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  115 kg (with wheels, bar drive and cutter)
• Dato Scheda Tecnica
  L1:1660 (1665)|L2:900 (950)|L3:760|H1:1250-400|W1:950-1450|W2:437, $6-speed (3 forward + 3 reverse) with 4.00-8'' wheels$1:1.05|1R:1.11|2:2.20|2R:2.32|3:3.63|3R:3.83
• SchedaTecnica
  With Cutterbar Mower

Two wheel tractors for intensive use

413 S

• Displacement
  270 cm³ - 277 cm³ - 302 cm³ - 349 cm³ - 389 cm³ - 441 cm³
• Gearbox
  6-speed (3 forward + 3 reverse)
• Differential
  yes
• Reverse gear
  yes, with handlebar lever
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height- and width-adjustable, 180° reversible, with vibration-damping device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  QuickFit (optional)
• Towing hitch
  yes
• Cowling
  yes
• Weight (with diesel engine, rotor and wheels)
  130 kg
• SchedaTecnica
  With Cutterbar Mower, With Two Wheel Tractor
• Dato Scheda Tecnica
  L1:1800|L2:690|L3:1110|H1:1470-630|W1:370|W2:800-400, L1:1770|L2:900|L3:870|H1:1440-570|W1:370|W2:1420-950, $6-speed (3 forward + 3 reverse) with 5.00-10'' wheels$1:1.26|1R:1.33|2:2.64|2R:2.79|3:4.37|3R:4.62, $6-speed (3 forward + 3 reverse) with 5.00-10'' wheels$1:1.33|1R:1.26|2:2.79|2R:2.64|3:4.62|3R:4.37

Professional cutterbar mowers

141

• Gearbox
  7-speed (4 forward + 3 reverse)
• Differential
  yes
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  135 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1660 (1665)|L2:900 (950)|L3:760|H1:1255-405|W1:900-1600|W2:445-586, $7-speed (4 forward + 3 reverse) with 4.00-10'' wheels$1:1.20|1R:1.27|2:2.57|2R:2.66|3:4.17|3R:4.41|4:13.05

Professional rotary cultivators

417 S

• Displacement
  389 cm³ - 277 cm³ - 429 cm³ - 441 cm³ - 505 cm³
• Gearbox
  5-speed (4 forward + 1 reverse)
• Differential
  yes
• Reverse gear
  yes, with gearshift lever
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc or mono-disc
• Handlebars
  height- and width-adjustable, 180° reversible, with vibration-damping device
• Brakes
  yes
• Power take-off
  2 power take offs: one indipendent 2-speed PTO (1° 540 rpm - 2° 900 rpm) and one synchronised PTO
• Accessories coupling
  flanged to PTO
• Towing hitch
  yes
• Cowling
  yes, with integral tool compartment/battery box
• Weight (with diesel engine, rotor and wheels)
  250 kg
• SchedaTecnica
  With Cutterbar Mower, With Two Wheel Tractor
• Dato Scheda Tecnica
  L1:2180|L2:730|L3:1450|H1:600-1300|W1:420-510|W2:600-900, L1:2185|L2:1125|L3:1060|H1:700-1300|W1:430-490|W2:1150-1600, $5-speed (4 forward + 1 reverse) with 6.50/80-12'' wheels$1:1.08|1R:2.82|2:2.02|3:3.61|4:7.91, $5-speed (4 forward + 1 reverse) with 6.50/80-12'' wheels$1:1.08|1R:2.82|2:2.02|3:3.61|4:7.91

Professional cutterbar mowers

150 S

• Gearbox
  6-speed (3 forward + 3 reverse)
• Differential
  yes
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  135 kg (with wheels, bar drive and cutter)
• SchedaTecnica
  With Cutterbar Mower
• Dato Scheda Tecnica
  L1:1660 (1665)|L2:900 (950)|L3:760|H1:1250-405|W1:900-1600|W2:445-586, $6-speed (3 forward + 3 reverse) with 4.00-10''$1:1,20|1R:1,27|2:2,57|2R:2,66|3:4,17|3R:4,41

Professional cutterbar mowers

150 MS

• Gearbox
  6-speed (3 forward + 3 reverse)
• Differential
  steering clutches controlled in combination with the brakes
• Fwd/Rev shuttle
  yes, control lever on handlebar
• Transmission
  with gears in oil bath
• Clutch
  dry multidisc
• Handlebars
  height-adjustable with anti-vibration device
• Brakes
  yes
• Power take-off
  independent at 973 rpm
• Accessories coupling
  Integral QuickFit supplied as standard
• Weight
  175 kg (with wheels, bar drive and cutter)
• Dato Scheda Tecnica
  $6-speed (3 forward + 3 reverse) with 5.00-10''$1:1.27|1R:1.34|2:2.72|2R:2.82|3:4.42|3R:4.68, L1:1765|L2:950|L3:860|H1:1260-410|W1:1270-1620|W2:715-800
• SchedaTecnica
  With Cutterbar Mower

Professional rotary cultivators

418 S

• Displacement
  429 cm³ - 505 cm³ - 654 cm³ - 851 cm³
• Gearbox
  5-speed (4 forward + 1 reverse)
• Differential
  yes
• Reverse gear
  yes, with gearshift lever
• Transmission
  with gears in oil bath
• Clutch
  dry single disc
• Handlebars
  height- and width-adjustable, 180° reversible, with vibration-damping device
• Brakes
  yes
• Power take-off
  2 power take offs: one indipendent 2-speed PTO (1° 540 rpm - 2° 900 rpm) and one synchronised PTO
• Accessories coupling
  flanged to PTO
• Towing hitch
  yes
• Cowling
  yes, with integral tool compartment/battery box
• Weight (with diesel engine, rotor and wheels)
  270 kg
• SchedaTecnica
  With Cutterbar Mower, With Two Wheel Tractor
• Dato Scheda Tecnica
  L1:2185|L2:1125|L3:1060|H1:700-1300|W1:450-510|W2:1150-1600, L1:2180|L2:730|L3:1450|H1:600-1300|W1:420-510|W2:600-900, $5-speed (4 forward + 1 reverse) with 6.50/80-12'' wheels$1:1.08|1R:2.82|2:2.02|3:3.61|4:7.91, $5-speed (4 forward + 1 reverse) with 6.50/80-12'' wheels$1:1.08|1R:2.82|2:2.02|3:3.61|4:7.91
