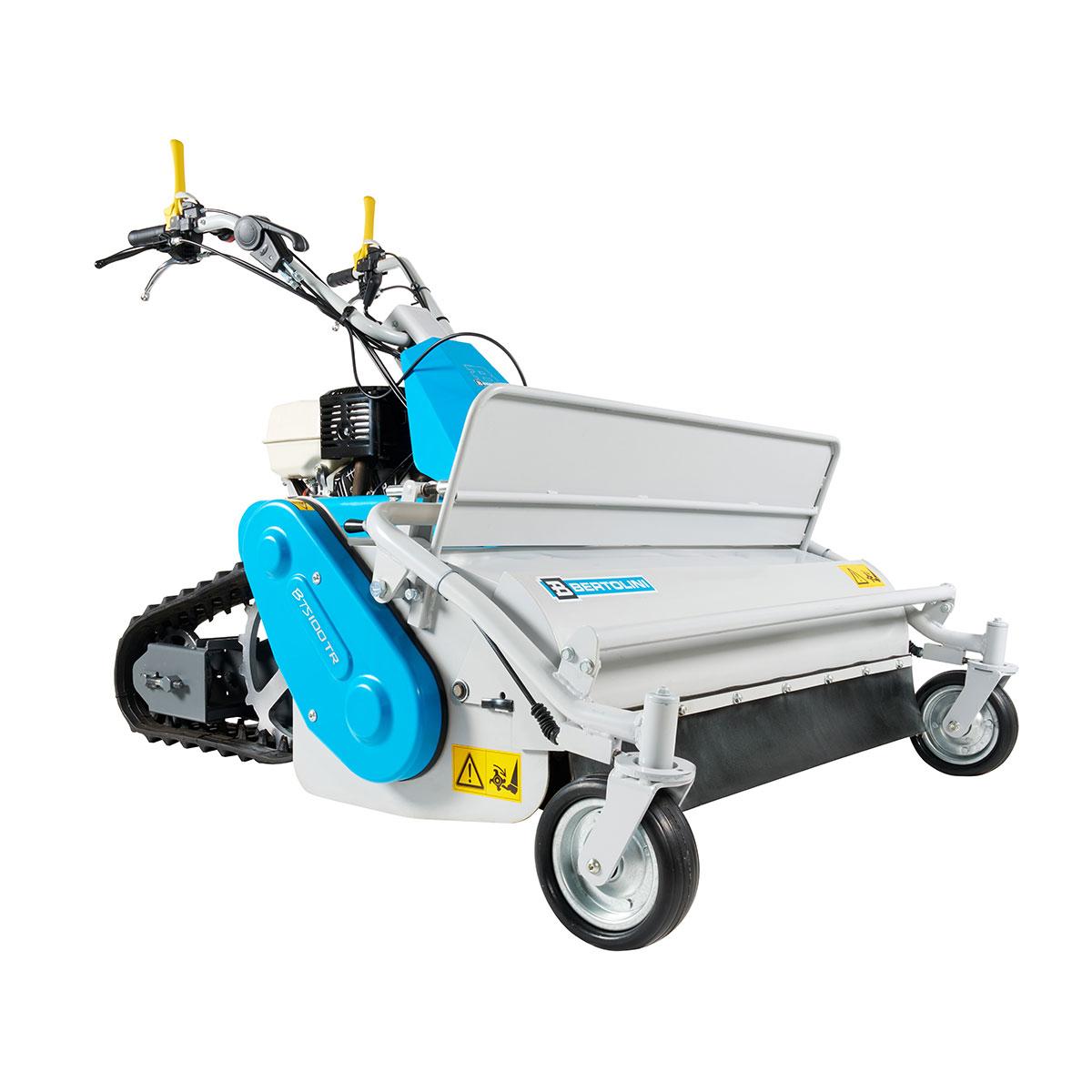

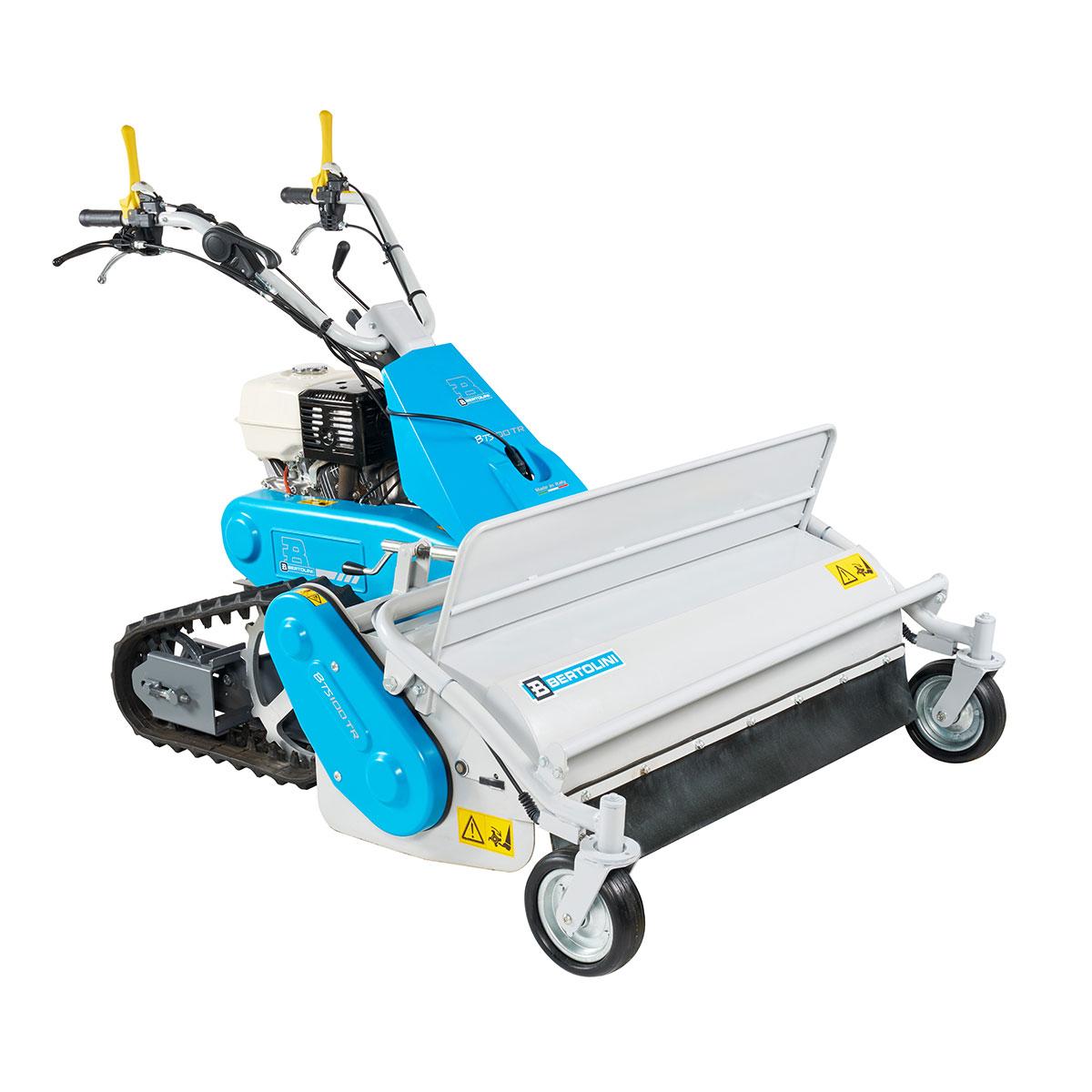

Professional flail mowers

PROFESSIONAL

BTS 100 TR

PROFESSIONAL
Power supply Engine Model Displacement Power* Starting Code
GX 390 OHV ALPIN 389 cm³ 11.7 HP recoil start 68279006E5
CH 440 OHV 429 cm³ 14.0 HP recoil start 68279007E5



* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.



The largest shredding capacity, combined with the most high-performance propulsion system. Powerful engines, for quick completion of any job in rural, wooded and inaccessible areas. The BTS 100 TR flail mower offers manouvrability and ease of use thanks to its ergonomically positioned control levers. The propulsion system with oscillating tracks adapts perfectly to various types of terrain, guaranteeing the best possible grip.

Gearbox
4-speed (3 forward + 1 reverse)
Transmission
with gears in oil bath
Clutch
belt with tensioner
Steering
with independent steering clutches and wheel lock
Handlebars
with vertical and horizontal adjustment
Working width
100 cm
Cutting height
20 - 80 mm, crank adjusted
Cutting unit
rotor with 58 "Y" shaped knives
Service brake
with automatic cut-in
Front wheels
swivel with lock/unlock via a lever on the handlebars

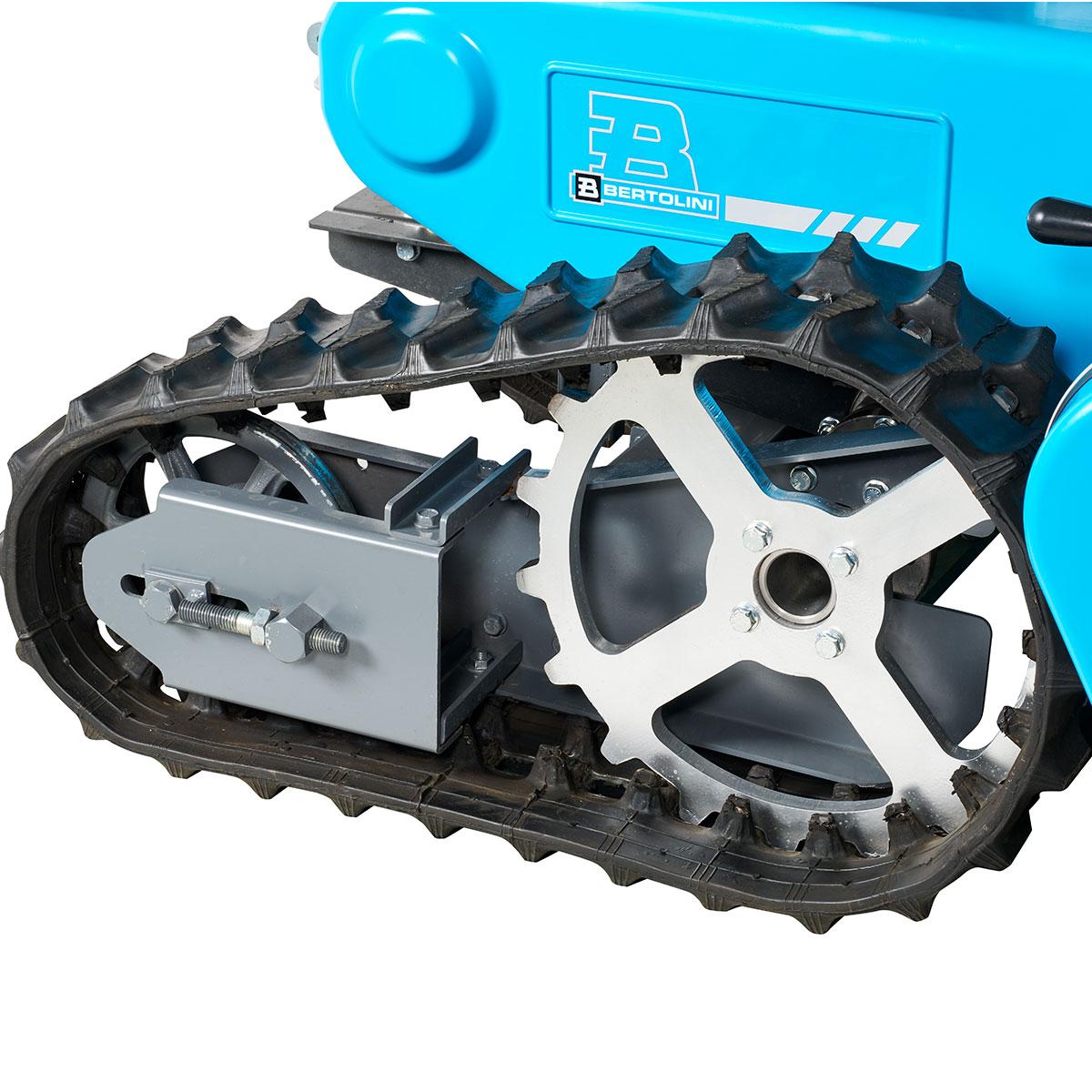

Rear wheels
tracks drive system
Weight
245 kg

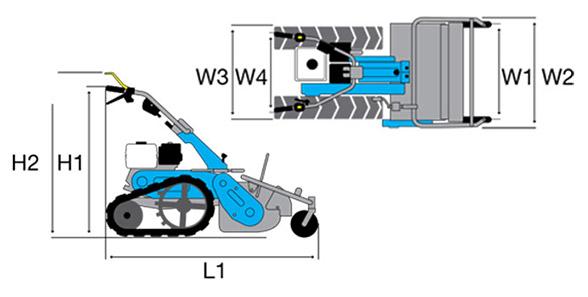

Dimensions (mm)

Dimensions (mm) | Bertolini
L11500
H11200
H21380
W11140
W21240
W3900
W4500

Gearbox / Speed (km/h) with wheels:

4-speed (3 forward + 1 reverse) with tracks

11.20
1R1.40
22.20
33.40
Sharp Pro | Bertolini
Sharp Pro
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
