Professional transporters
PROFESSIONAL

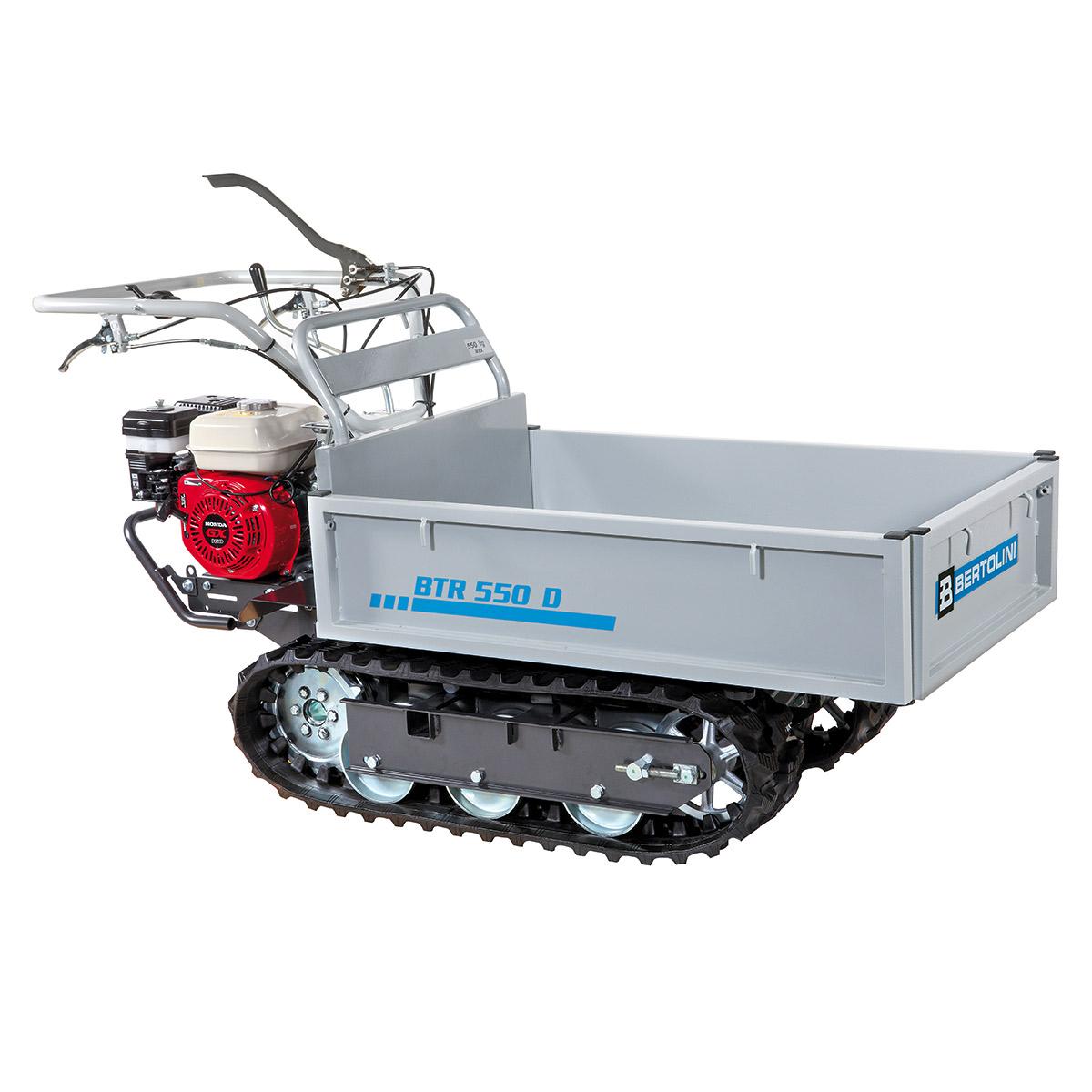

BTR 550 D
PROFESSIONAL
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| GX 160 OHV | 163 cm³ | 4.8 HP | recoil start | 68729128E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
Professional model offering a combination of high power, easy handling and high load capacity. The transporter is ideal for applications in the agricultural and building sectors. Tipping is hydraulically operated to provide the maximum possible assistance for the operator during material handling activities.
- Gearbox
- 6-speed (4 forward + 2 reverse)
- Transmission
- with gears in oil bath
- Clutch
- belt, with automatic disengagement when the control lever is released
- Brakes
- with automatic cut-in when the clutch is released
- Load capacity
- 550 Kg
- Loading surface
- telescoping

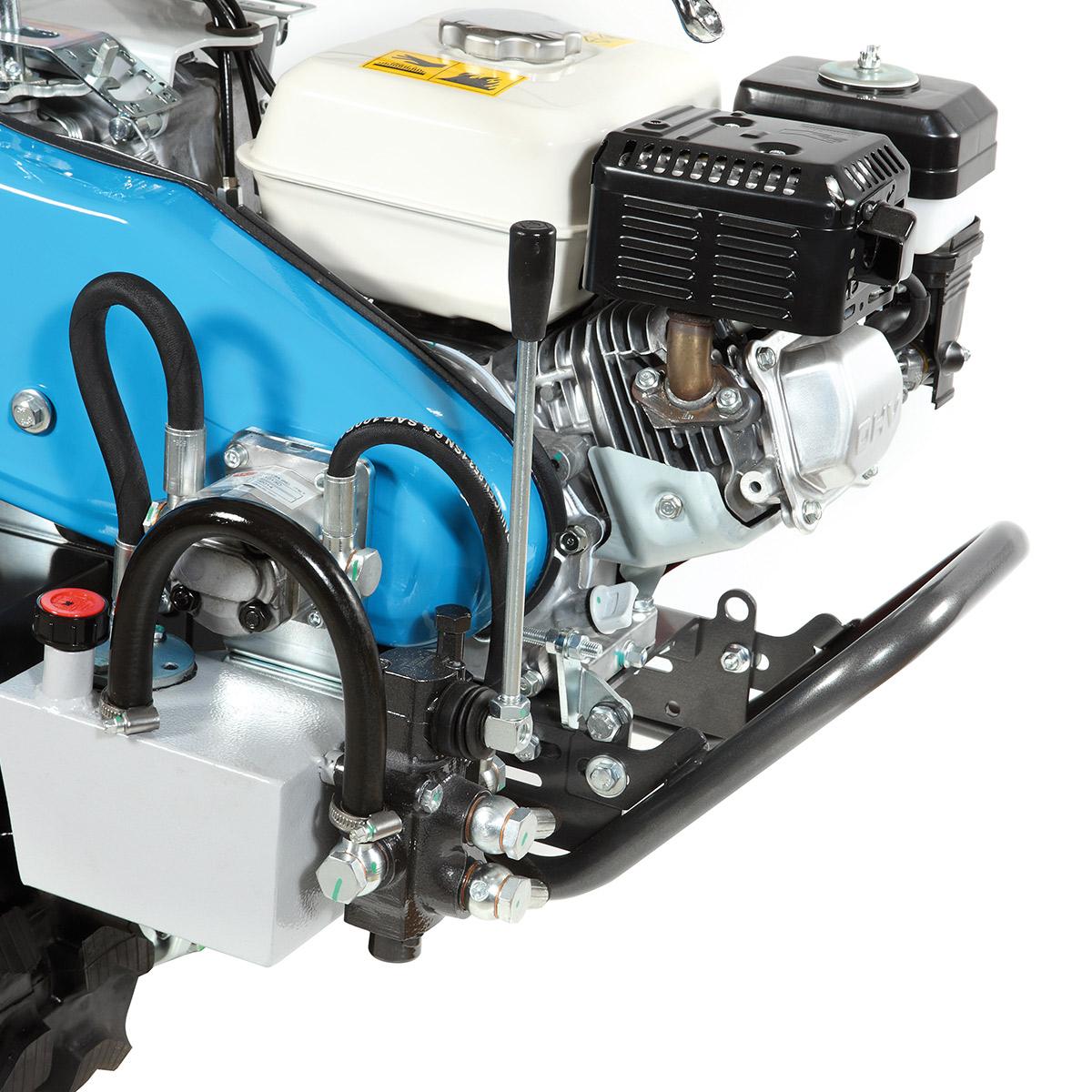

- Dumping
- hydraulic
- Dump angle
- 50°
- Steering
- with independently controlled releases and brakes
- Minimum steering radius
- 700 mm

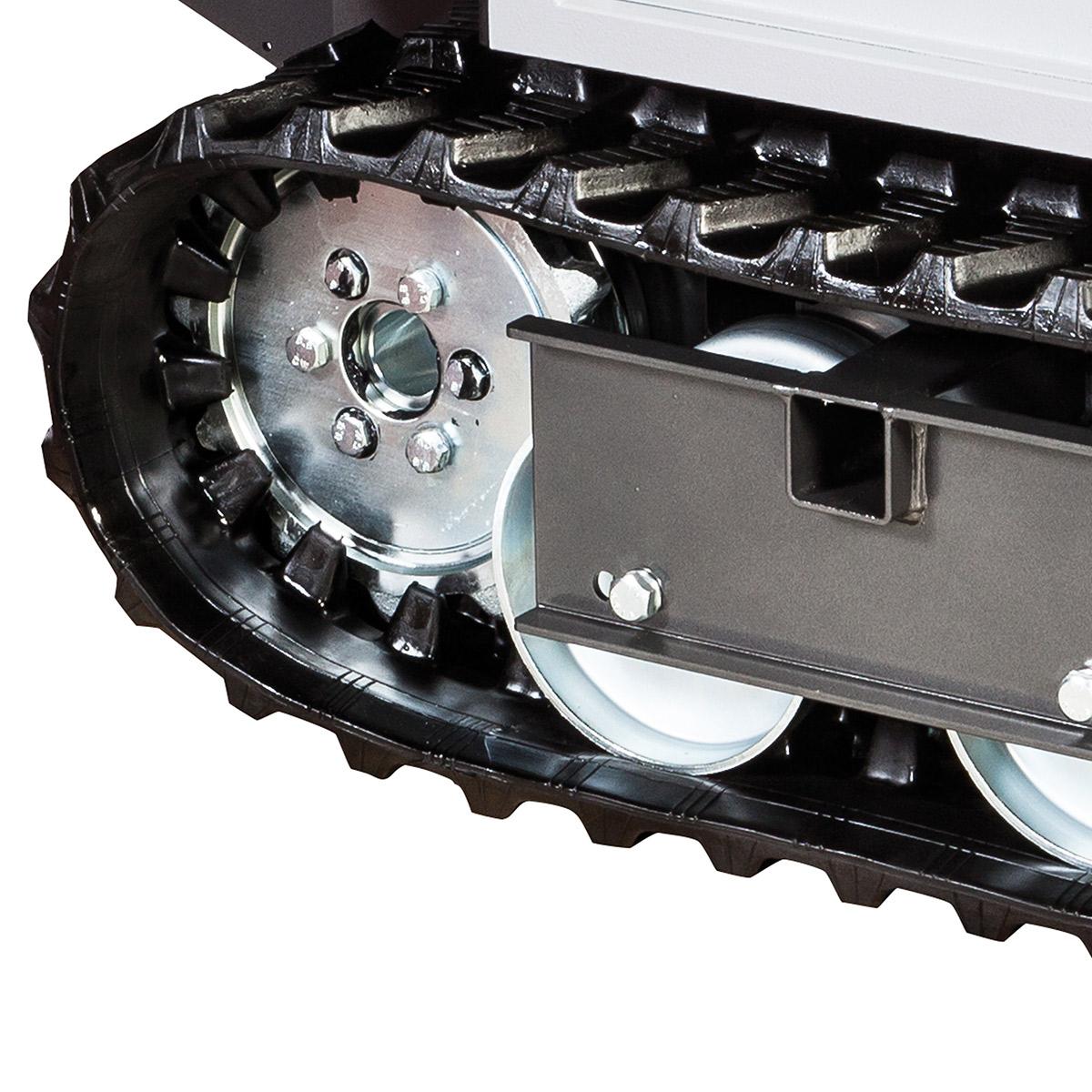

- Crawler contact surface
- 60 cm length - 18 cm width
- Power take-off
- independent at 2100 rpm
- Weight
- 215 kg
Gearbox / Speed (km/h):
| 1 | 1.88 |
| 1R | 1.86 |
| 2 | 3.16 |
| 2R | 3.13 |
| 3 | 4.13 |
| 4 | 7.00 |
Dimensions (mm)
| L1 | 1745 |
| L2 | 1000-1180 |
| H1 | 1020 |
| H2 | 900 |
| H3 | 590 |
| H4 | 240 |
| H5 | 339 |
| H6 | 70 |
| W1 | 620 |
| W2 | 733 |
| W3 | - |
| W4 | 650-1100 |
| P1 | 785 |
| P2 | 405 |
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
