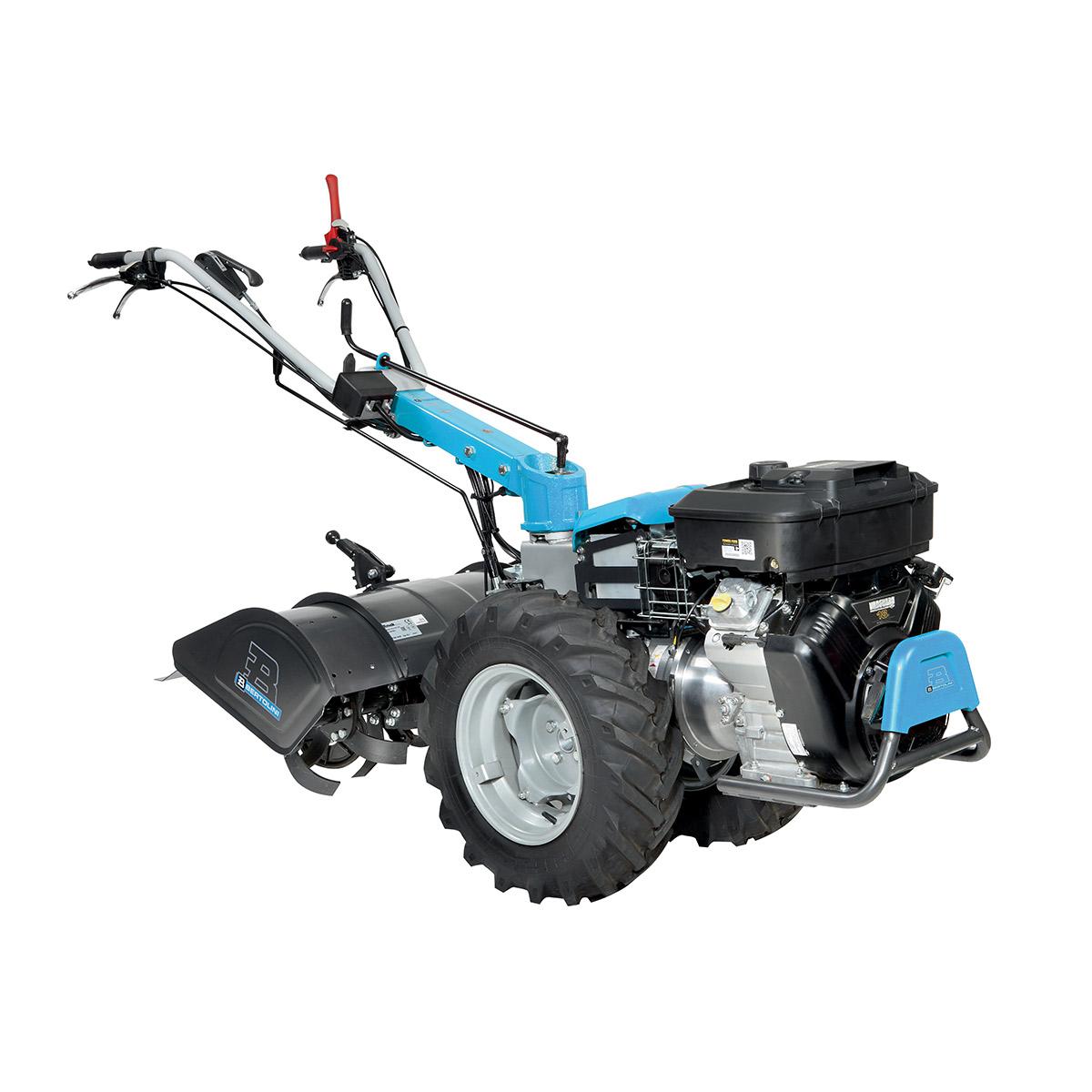

Professional rotary cultivators

PROFESSIONAL

418 S

PROFESSIONAL
Power supply Engine Model Displacement Power* Starting Notes Code
GX 390 OHV 389 cm³ 11.7 HP recoil start mono-disc clutch 68339168E5
CH 440 OHV 429 cm³ 14.0 HP recoil start/ electric mono-disc clutch/ battery supplied as standard 68339158E5
VANGUARD 18 570 cm³ 18.0 HP recoil start/ electric mono-disc clutch/ battery supplied as standard 68339163E5


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Its characteristics of high power and reliability make this model perfect for farmers and ground care professionals. Combines exceptional ease of handling and versatility with the ability to work on all types of terrain safely, thanks to the self-locking differential and 5-speed gearbox. The powerful engines available for this model are exploited in full thanks to the reinforced half-shafts, while the large size final reduction gears on the axle ensure efficient transmission of the full engine power while increasing the machine’s ground clearance.

Displacement
389 cm³ - 429 cm³ - 570 cm³
Gearbox
5-speed (4 forward + 1 reverse)
Transmission
with gears in oil bath
Clutch
dry single disc
Handlebars
height- and width-adjustable, 180° reversible, with vibration-damping device
Reverse gear
yes, with gearshift lever
Differential
yes
Brakes
yes
Power take-off
2 power take offs: one indipendent 2-speed PTO (1° 540 rpm - 2° 900 rpm) and one synchronised PTO
Accessories installation
flanged to PTO
Towing hitch
yes
Cowling
yes, with integral tool compartment/battery box
Weight (with diesel engine, rotor and wheels)
230 kg

WITH TWO WHEEL TRACTOR

Gearbox / Speed (km/h):

5-speed (4 forward + 1 reverse) with 6.50/80-12'' wheels

11.08
1R2.82
22.02
33.61
47.91

Dimensions (mm)

Dimensions (mm) | Bertolini
L12180
L2730
L31450
H1600-1300
W1420-510
W2600-900

WITH CUTTERBAR MOWER

Gearbox / Speed (km/h):

5-speed (4 forward + 1 reverse) with 6.50/80-12'' wheels

11.08
1R2.82
22.02
33.61
47.91

Dimensions (mm)

Dimensions (mm) | Bertolini
L12185
L21125
L31060
H1700-1300
W1450-510
W21150-1600
Sharp Pro | Bertolini
Sharp Pro
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
