Professional flail mowers
PROFESSIONAL
BTS 100
PROFESSIONAL
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| GX 390 OHV | 389 cm³ | 11.7 HP | recoil start | 68279000E5 | ||
| GX 390 OHV ALPIN | 389 cm³ | 11.7 HP | recoil start | 68279001E5 | ||
| CH 440 OHV | 429 cm³ | 14.0 HP | recoil start | 68279002E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

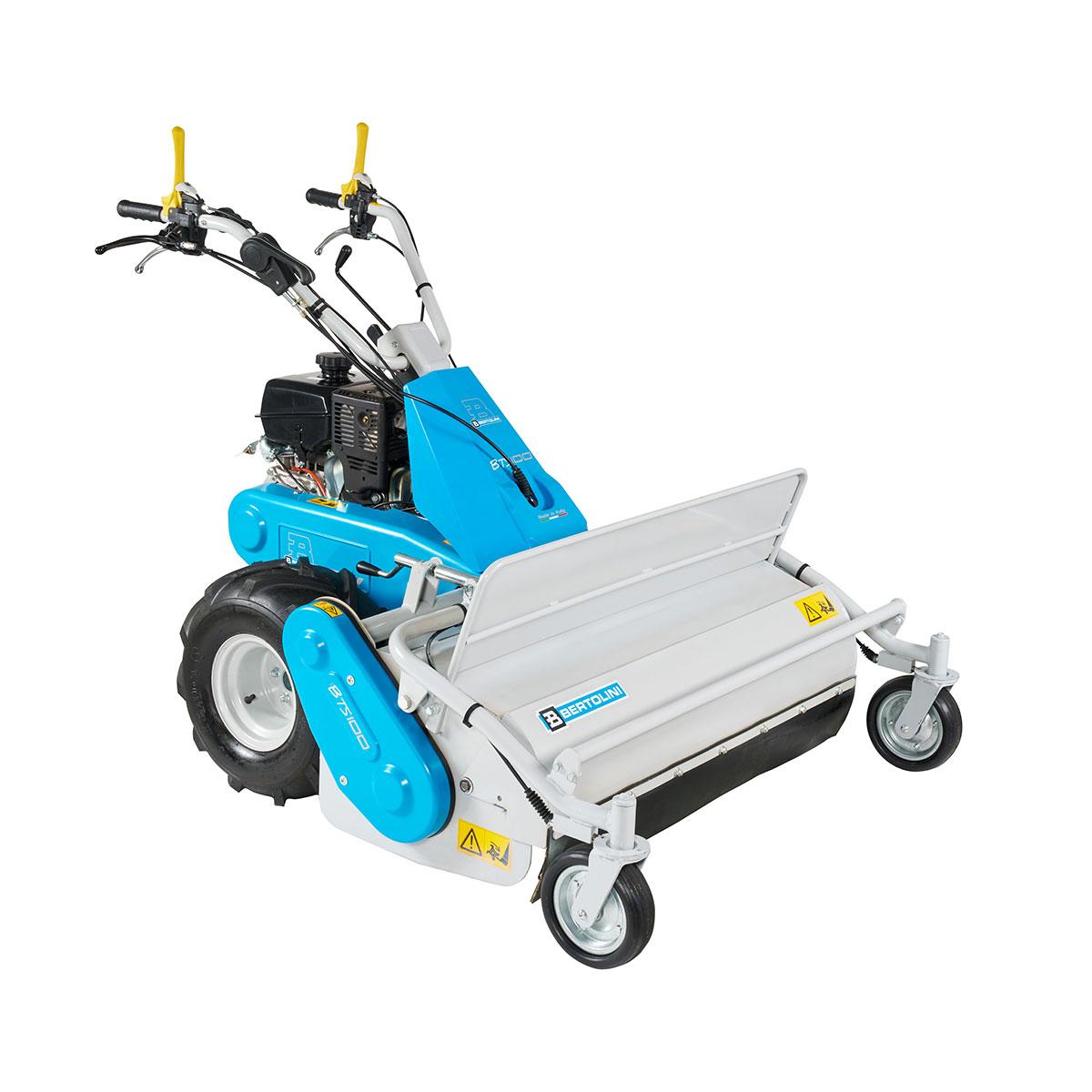

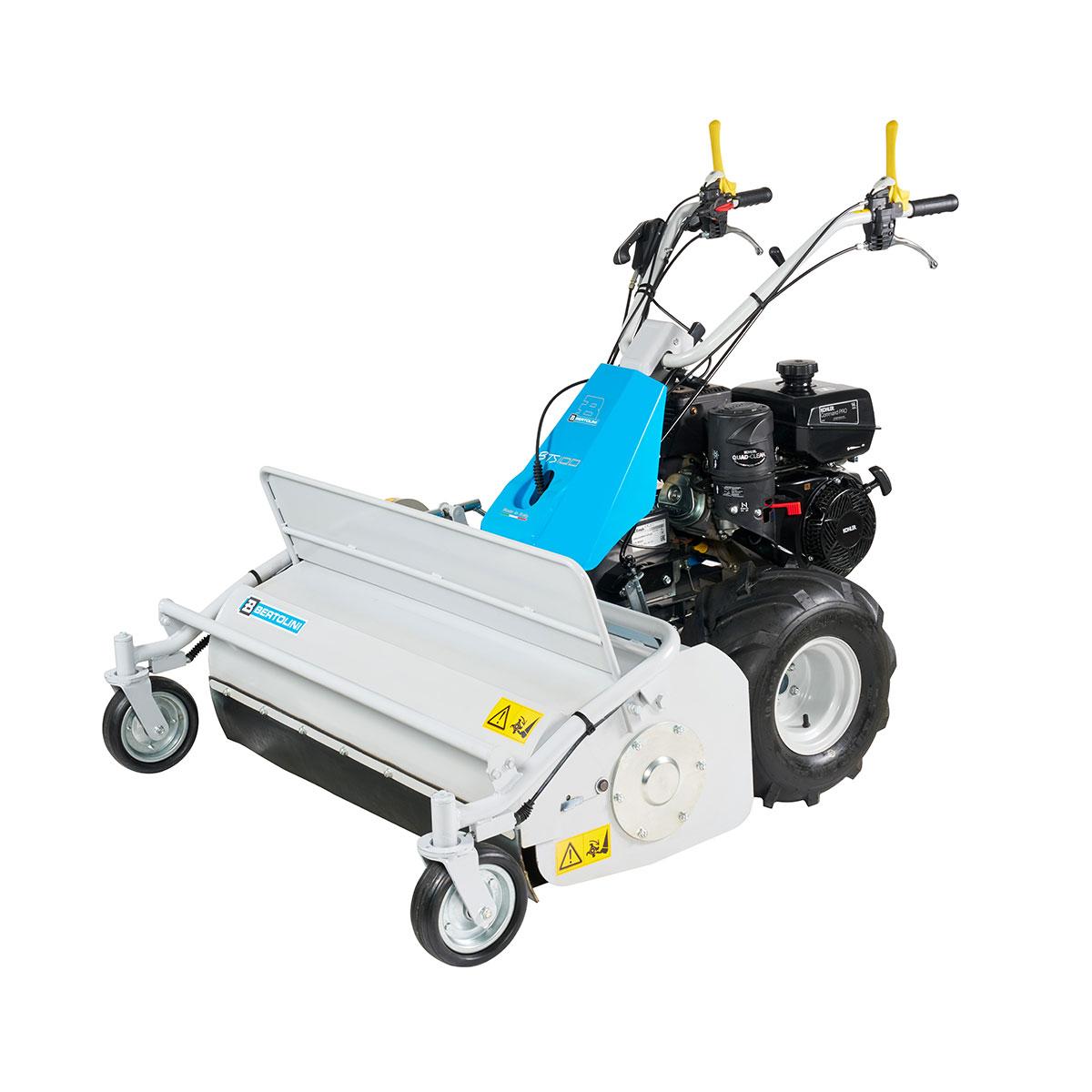

The largest shredding capacity and powerful engine ensure quick completion of any job in rural, uncultivated and wooded areas. The BTS 100 flail mower offers manouvrability and ease of use thanks to the ergonomically positioned control levers. Independent steering clutches on the driving wheels allow the machine to be manoeuvred effortlessly and in total safety.
- Gearbox
- 4-speed (3 forward + 1 reverse)
- Working width
- 100 cm
- Cutting height
- 20 - 80 mm, crank adjusted
- Transmission
- with gears in oil bath
- Clutch
- belt with tensioner
- Steering
- with independent steering clutches and wheel lock
- Handlebars
- with vertical and horizontal adjustment
- Cutting unit

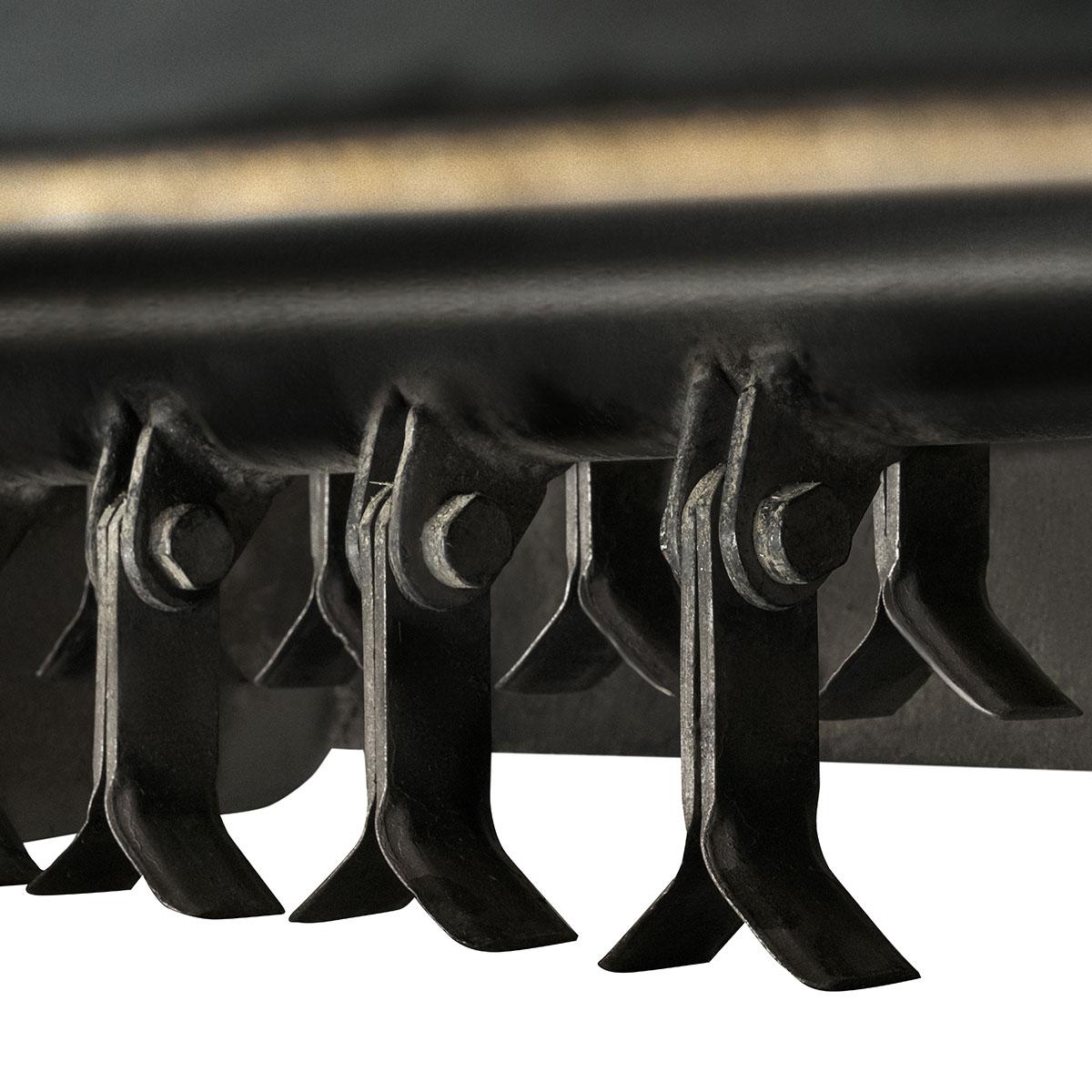

- rotor with 58 "Y" shaped knives
- Service brake
- with automatic cut-in
- Wheels

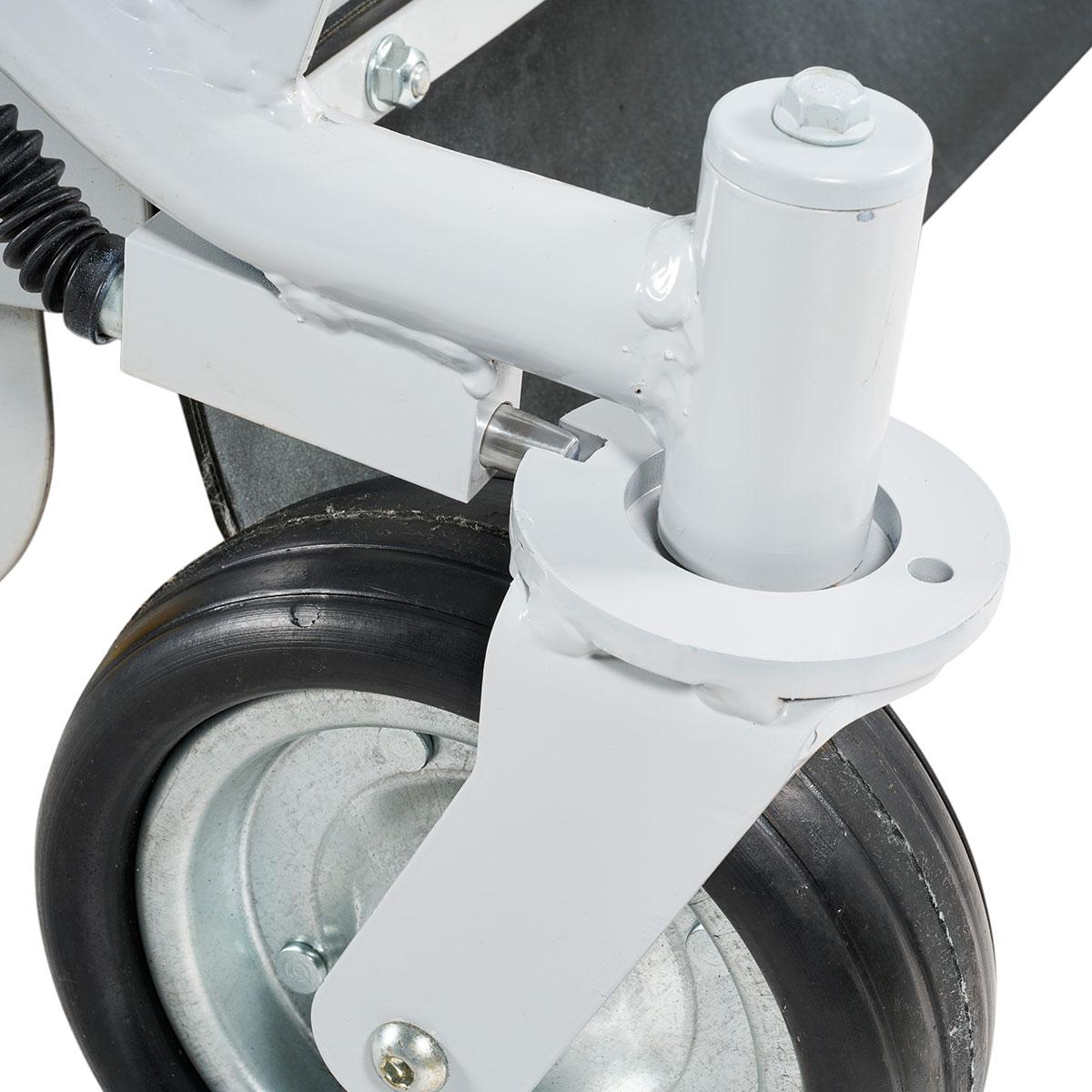

- Rear wheels: 18/9.50-8", Front wheels: swivel with lock
- Weight
- 203 kg
Gearbox / Speed (km/h) with wheels:
4-speed (3 forward + 1 reverse) with 18/9.50-8'' wheels
| 1 | 1.40 |
| 1R | 1.60 |
| 2 | 2.50 |
| 3 | 3.90 |
Dimensions (mm)
| L1 | 1500 |
| H1 | 1200 |
| H2 | 1380 |
| W1 | 1140 |
| W2 | 1240 |
| W3 | 900 |
| W4 | 500 |
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
