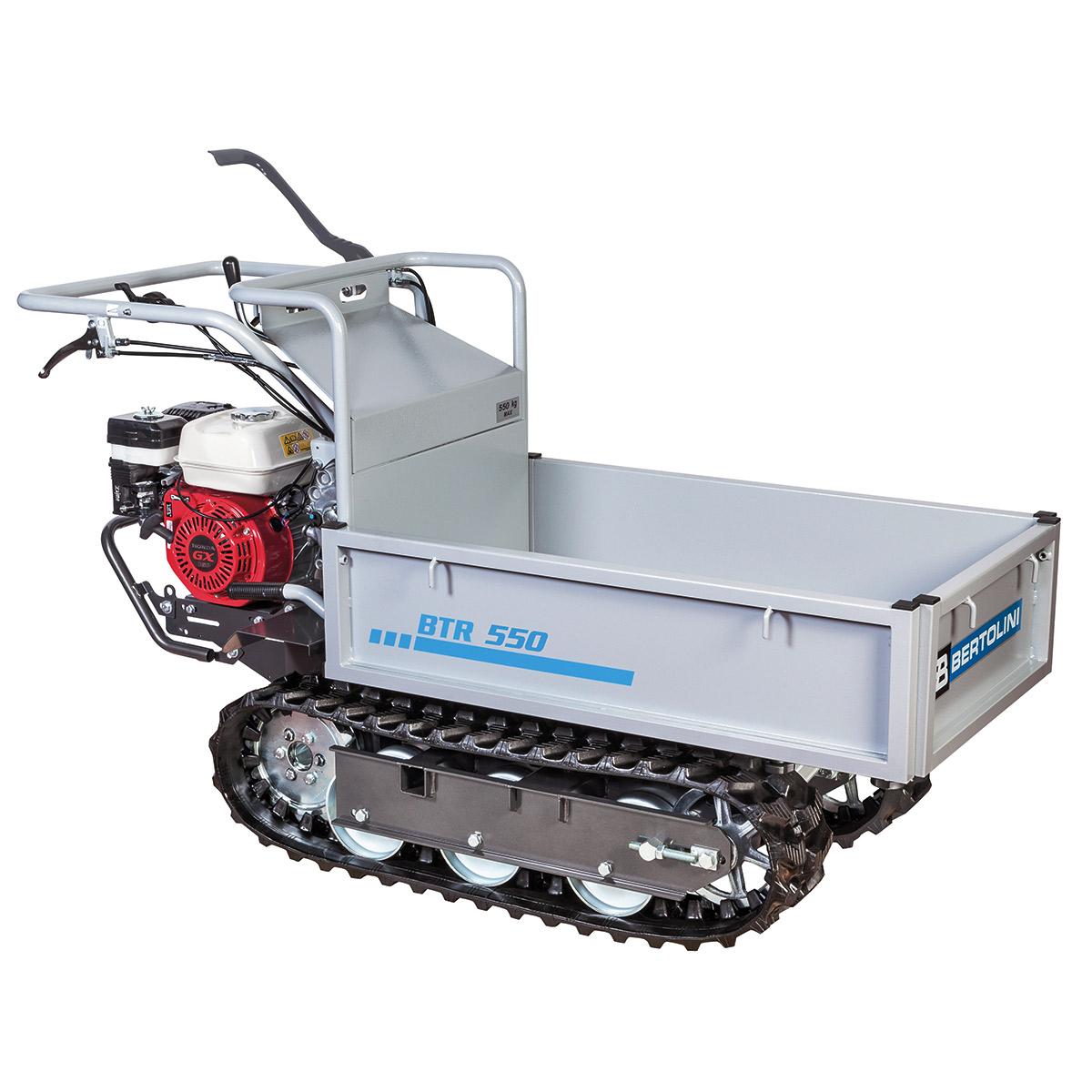

Professional transporters

PROFESSIONAL

BTR 550

PROFESSIONAL
Power supply Engine Model Displacement Power* Starting Code
GX 160 OHV 163 cm³ 4.8 HP recoil start 68729118E5
K 800 H 182 cm³ 5.7 HP recoil start 68719134E5



* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.



This is a powerful professional machine, rugged and compact, and idea for use on all types of terrain. With high load capacity, this machine stands out for its versatility and the safety devices installed.

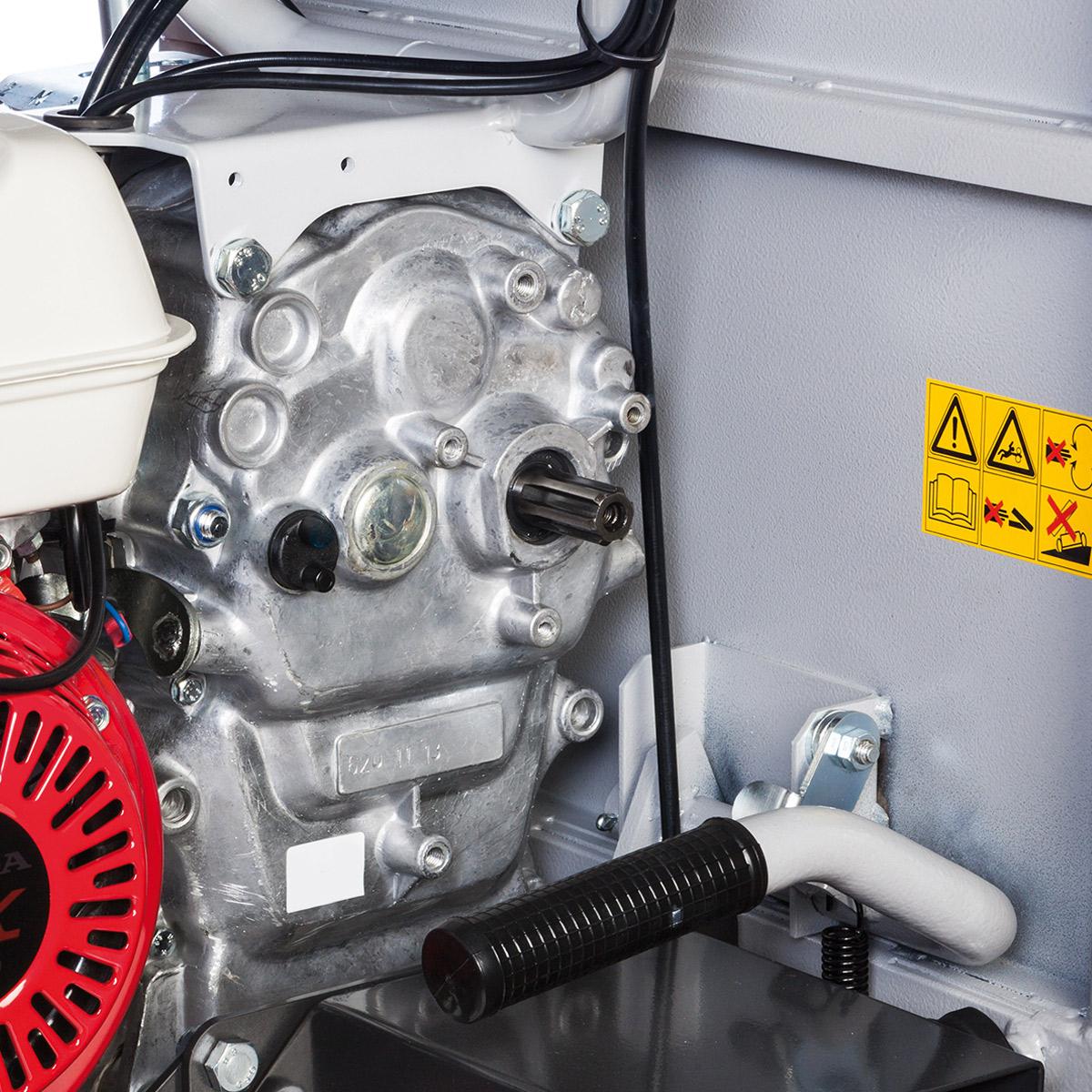

Gearbox
6-speed (4 forward + 2 reverse)
Transmission
with gears in oil bath
Clutch
belt, with automatic disengagement when the control lever is released
Brakes
with automatic cut-in when the clutch is released
Load capacity
550 Kg

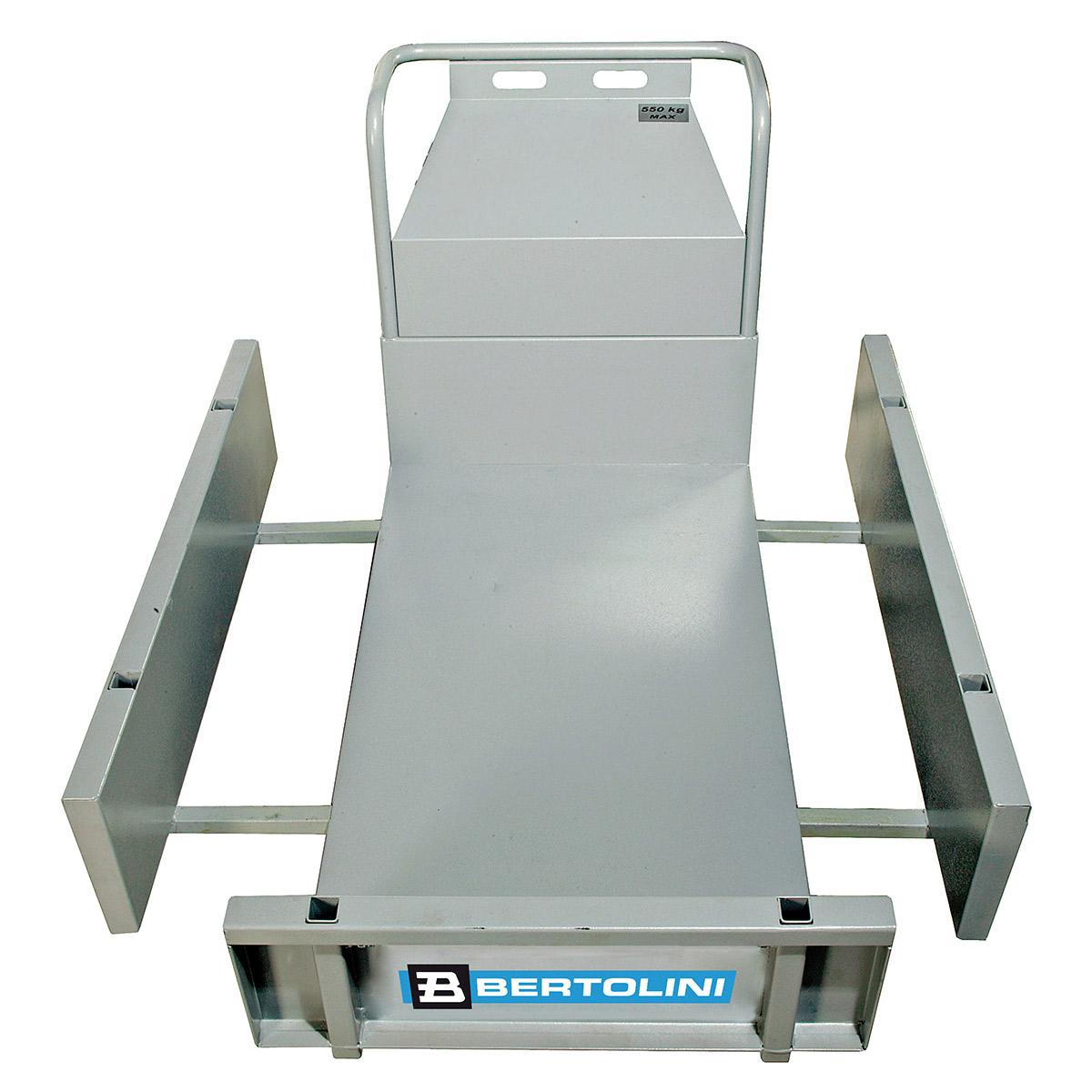

Loading surface
telescoping
Dumping
manual
Dump angle
50°

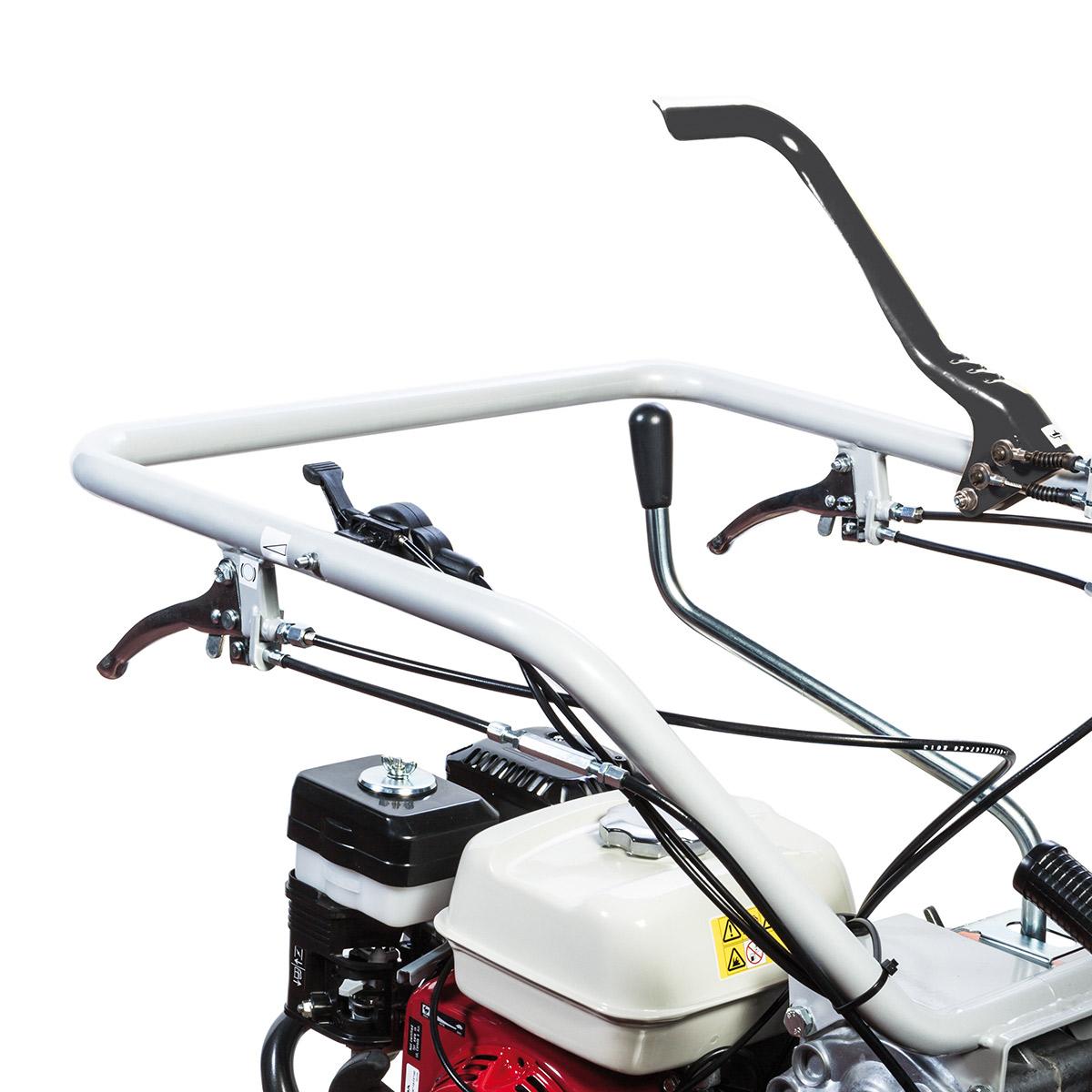

Steering
with independently controlled releases and brakes
Minimum steering radius
700 mm
Crawler contact surface
60 cm length - 18 cm width
Power take-off
independent at 2100 rpm
Weight
200 kg

Gearbox / Speed (km/h):

11.88
1R1.86
23.16
2R3.13
34.13
47.00

Dimensions (mm)

Dimensions (mm) | Bertolini
L11745
L21000-1180
H11020
H2900
H3590
H4240
H5339
H670
W1620
W2733
W3-
W4650-1100
P1785
P2405
Sharp Pro | Bertolini
Sharp Pro
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
