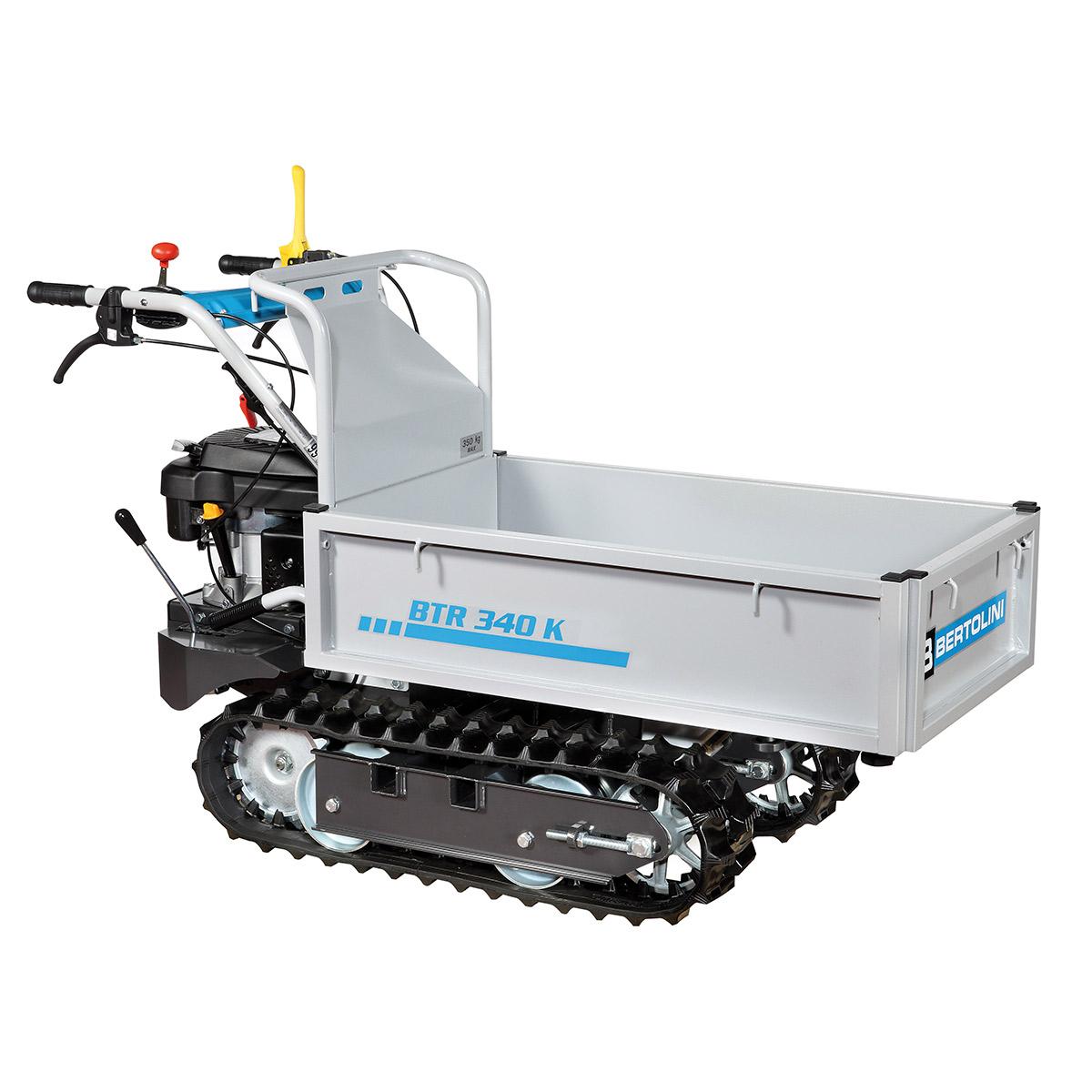

Transporters for private use BTR 340_1 | Bertolini

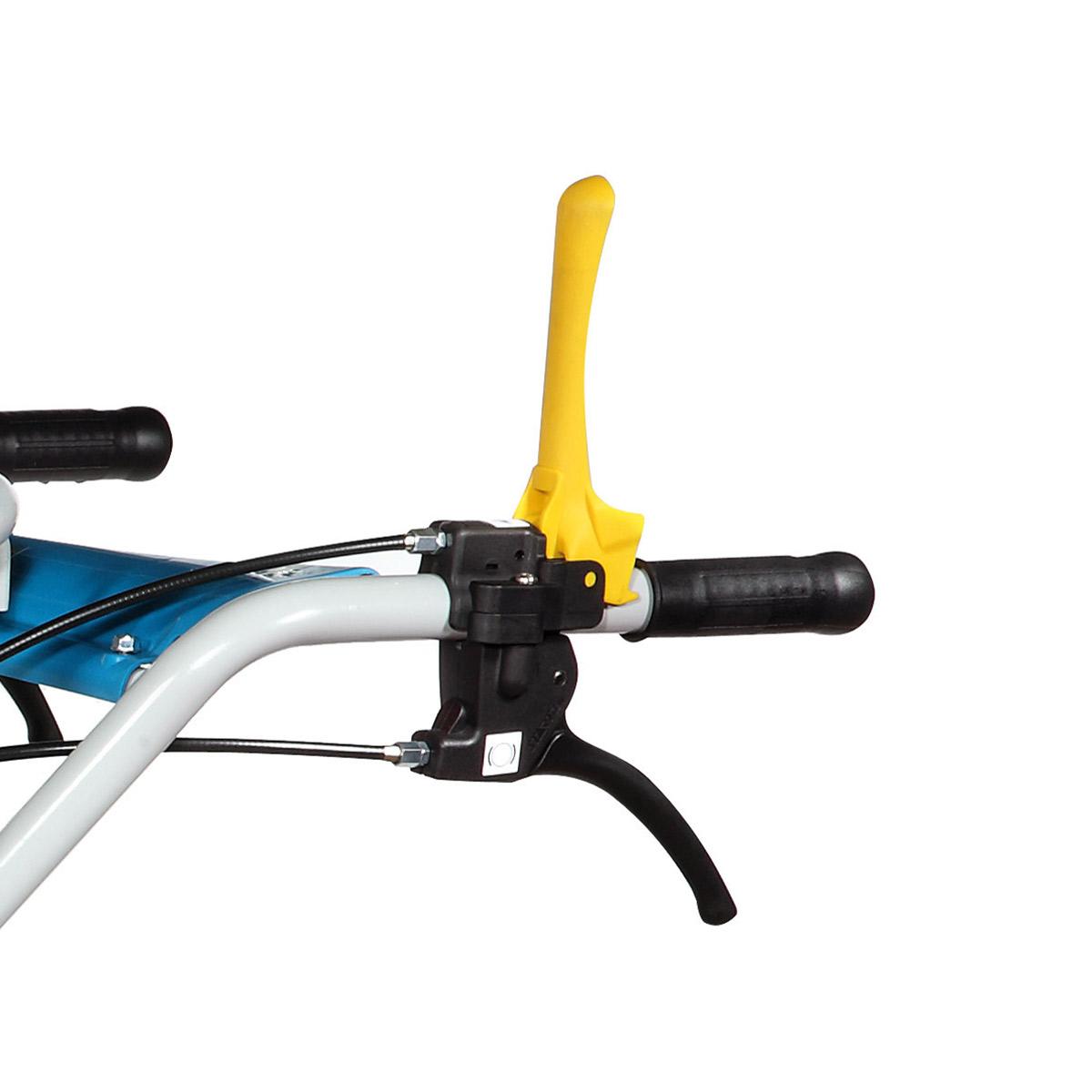

Transporters for private use BTR 340_2 | Bertolini

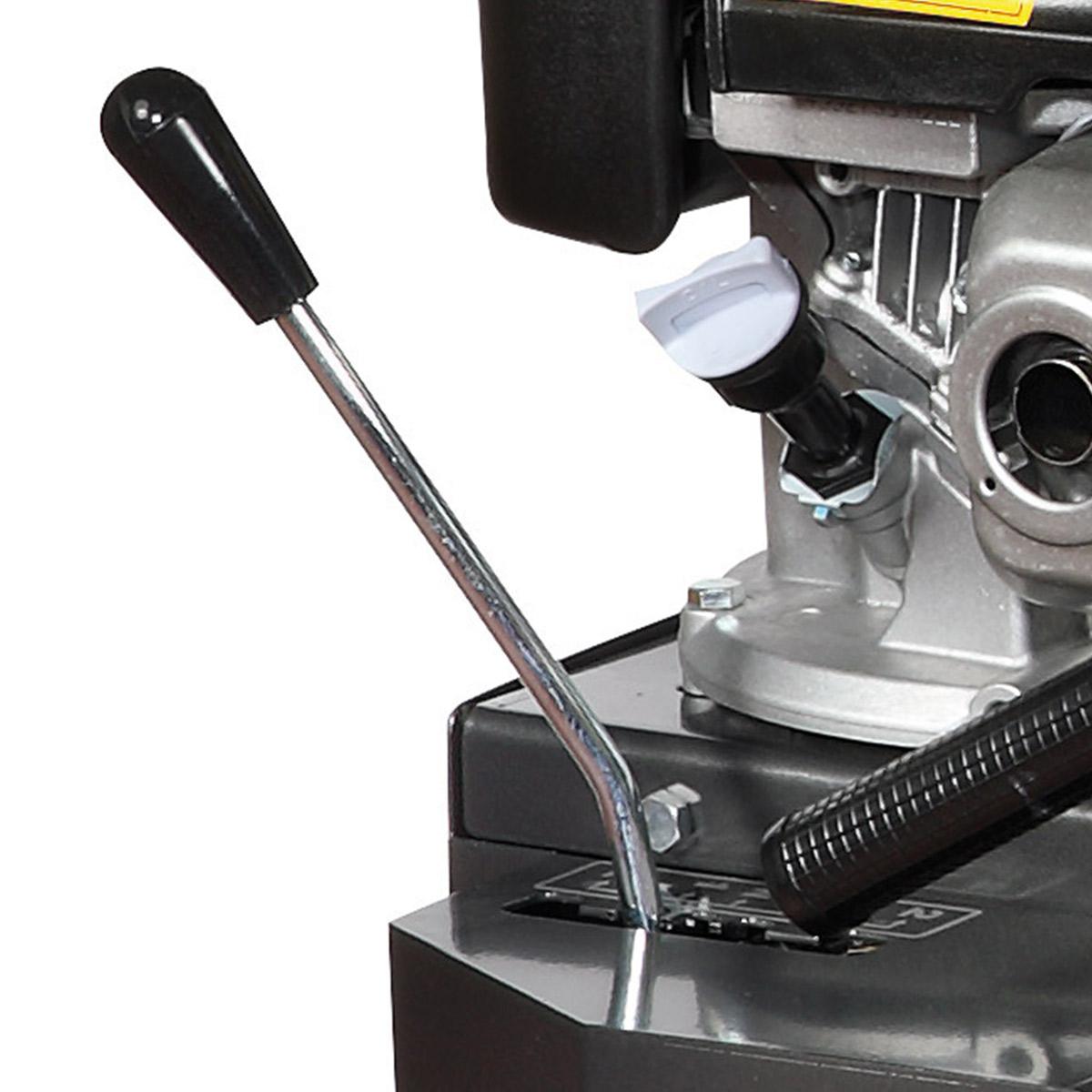

Transporters for private use BTR 340_3 | Bertolini
Transporters for private use BTR 340_4 | Bertolini

Transporters for private use

CONSUMER

BTR 340

CONSUMER
Power supply Engine Model Displacement Power* Starting Code
750 DOV 161 cm³ 3.8 HP recoil start 68719040
GCVx 170 OHC 166 cm³ 4.4 HP recoil start 68719048E5
K 655 OHV 166 cm³ 3.9 HP recoil start 68719044E5


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Designed for demanding home users needing to transport all types of material, such as firewood, fruit crates, and other bulky items, this machine is practical and easy to handle on all types of terrain.

Gearbox
4-speed (2 forward + 2 reverse)
Transmission
with gears in oil bath
Clutch
belt, with automatic disengagement when the control lever is released
Brakes
with automatic cut-in when the clutch is released
Load capacity
350 Kg
Loading surface
telescoping
Dumping
manual
Dump angle
45°
Steering
with independently controlled releases and brakes
Minimum steering radius
700 mm
Crawler contact surface
58 cm length – 17 cm width
Power take-off
no
Weight
140 kg

Gearbox / Speed (km/h):

11.60
1R1.40
23.60
2R3.40

Dimensions (mm)

Dimensions (mm) | Bertolini
L11530-1665
L2925-1060
H1965
H2885
H3570
H4240
H5330
H665
W1590
W2603-983
W3170
W4520-900
P1690
P2415-550
Home Plus | Bertolini
Home Plus
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
