Professional transporters
PROFESSIONAL

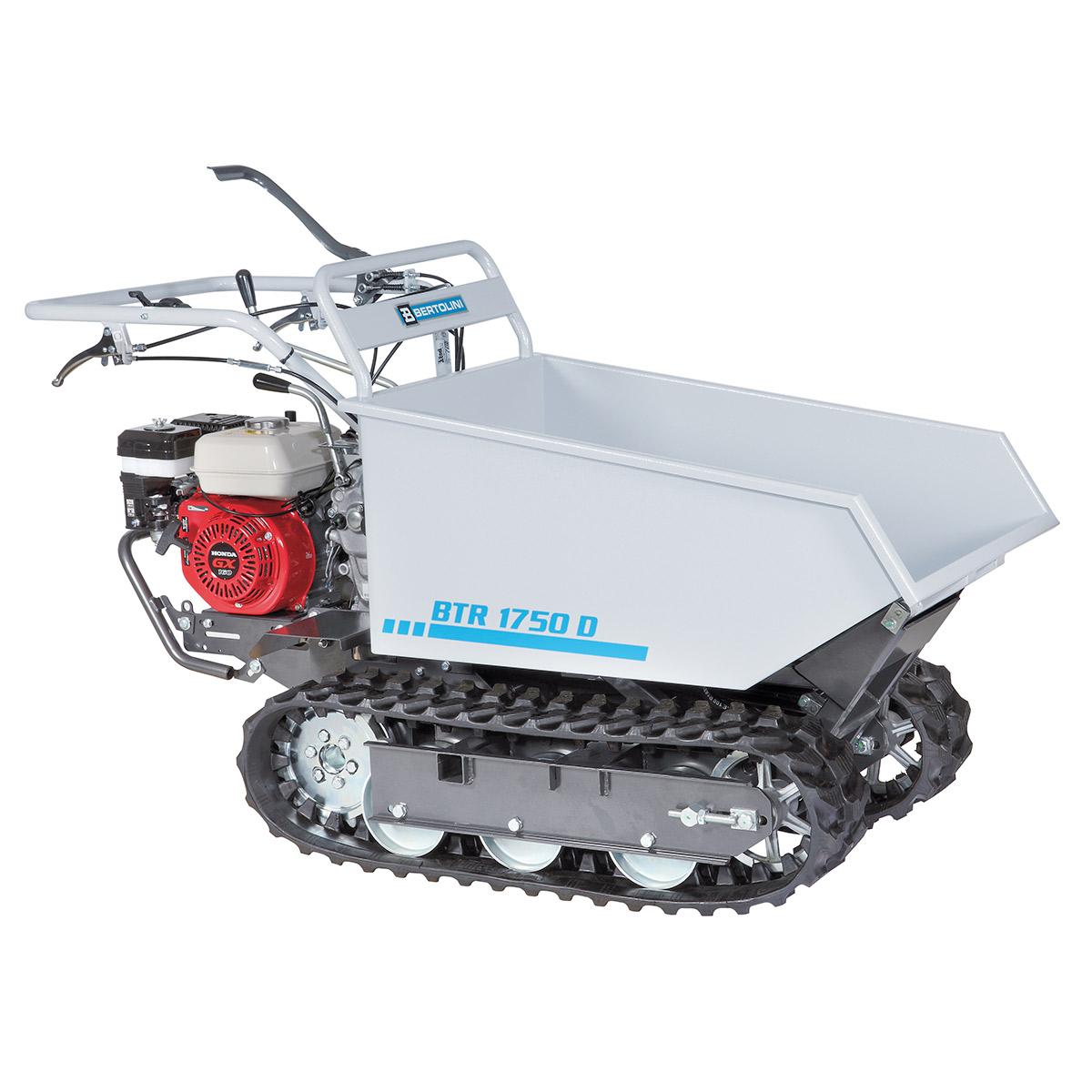

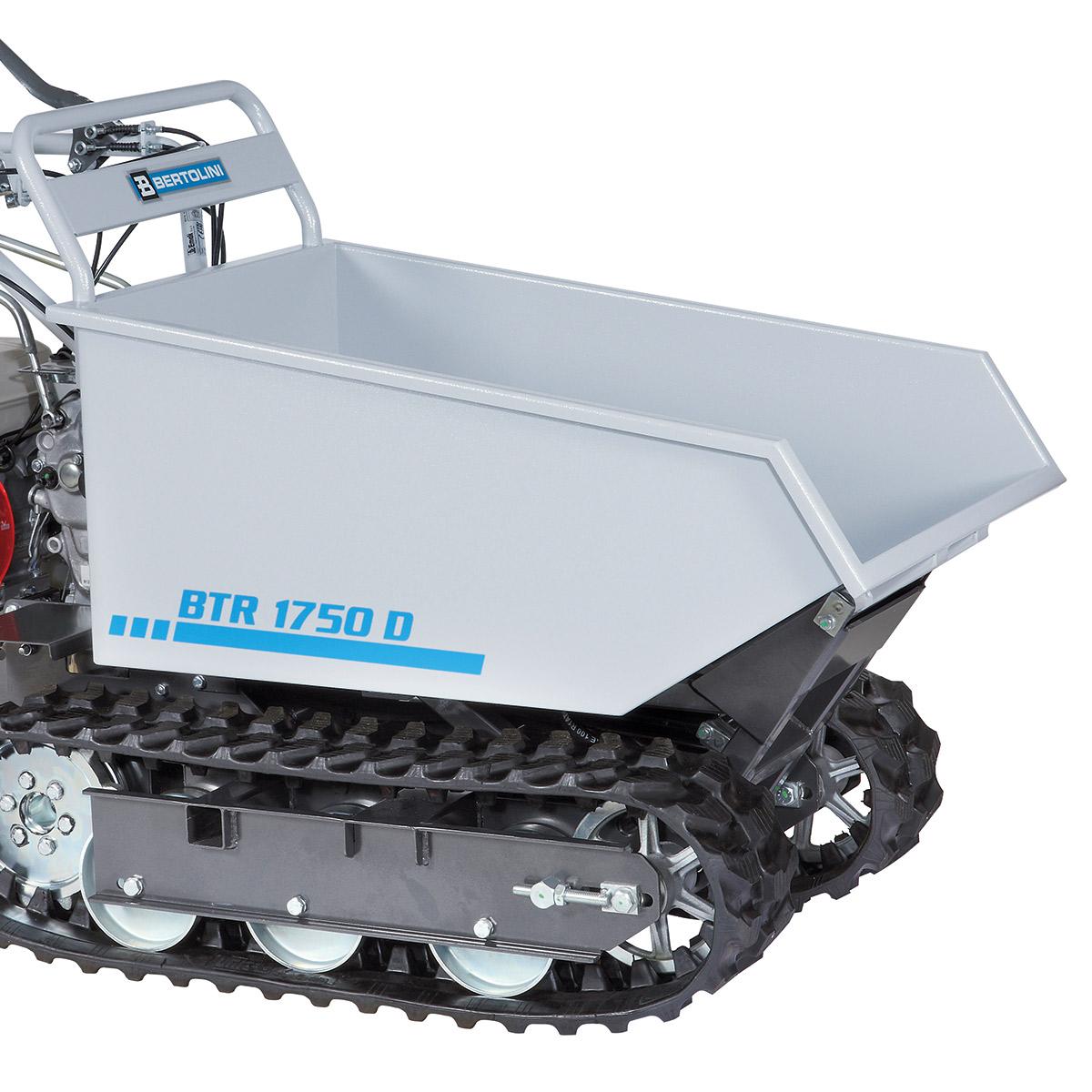

BTR 1750 D
PROFESSIONAL
| Power supply | Engine | Model | Displacement | Power* | Starting | Code |
|---|---|---|---|---|---|---|
| GX 160 OHV | 163 cm³ | 4.8 HP | recoil start | 68729122E5 |
* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.
Designed for professional use, this is a dumper model with hydraulically operated load box tipping: ideal for transporting firewood, stone, sand and other building materials. Its increased dumping angle - 60° - meets the need for creating piles and mounds. Suited to all kinds of terrain, even on slopes, this transporter has a small steering radius, making it easy to handle.
- Gearbox
- 6-speed (4 forward + 2 reverse)
- Transmission
- with gears in oil bath
- Clutch
- belt, with automatic disengagement when the control lever is released
- Brakes
- with expansion and automatic cut-in when the clutch is released
- Load capacity
- 550 Kg
- Loading surface
- fixed
- Dumping
- hydraulic
- Dump angle
- 60°
- Steering
- with independently controlled releases and brakes
- Minimum steering radius
- 700 mm

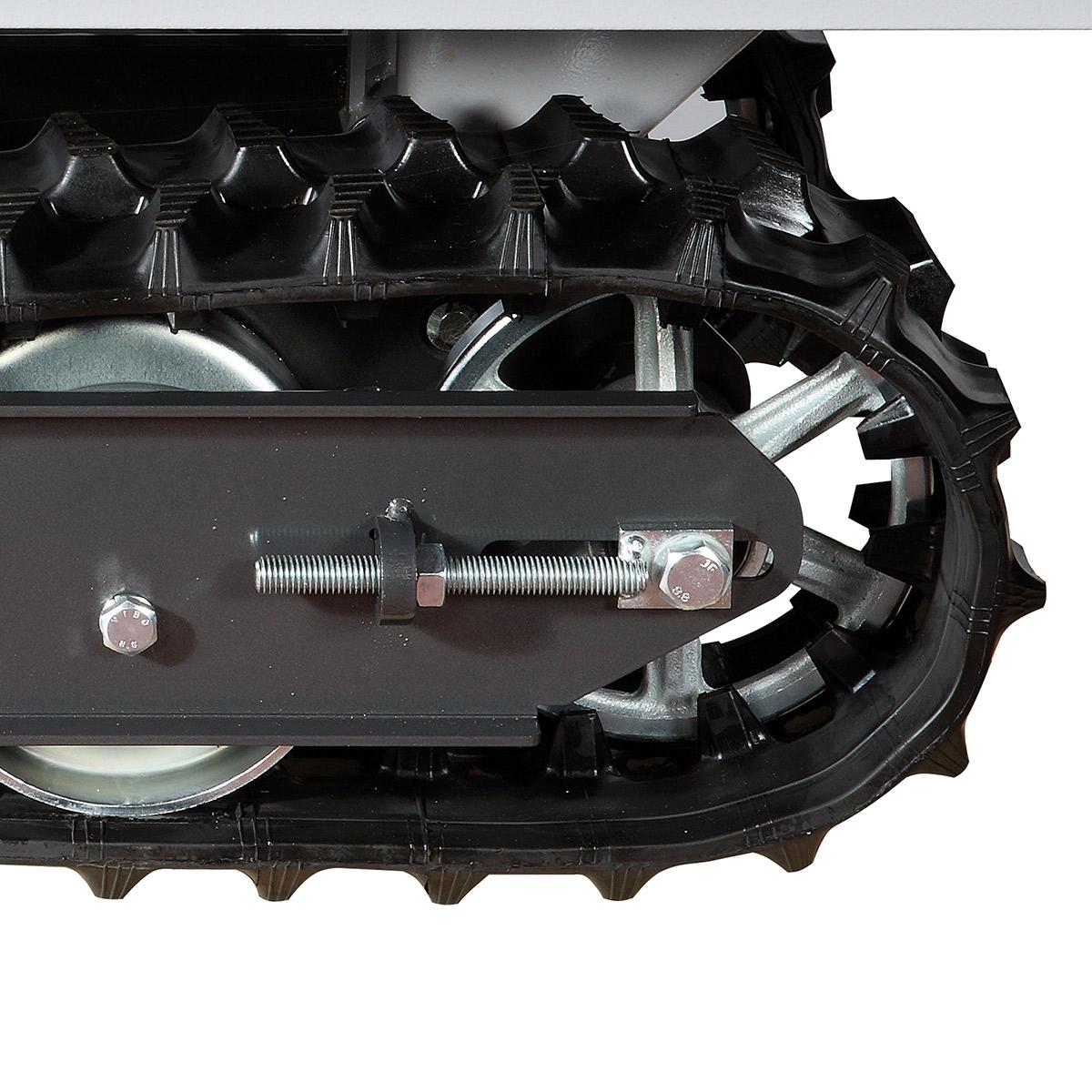

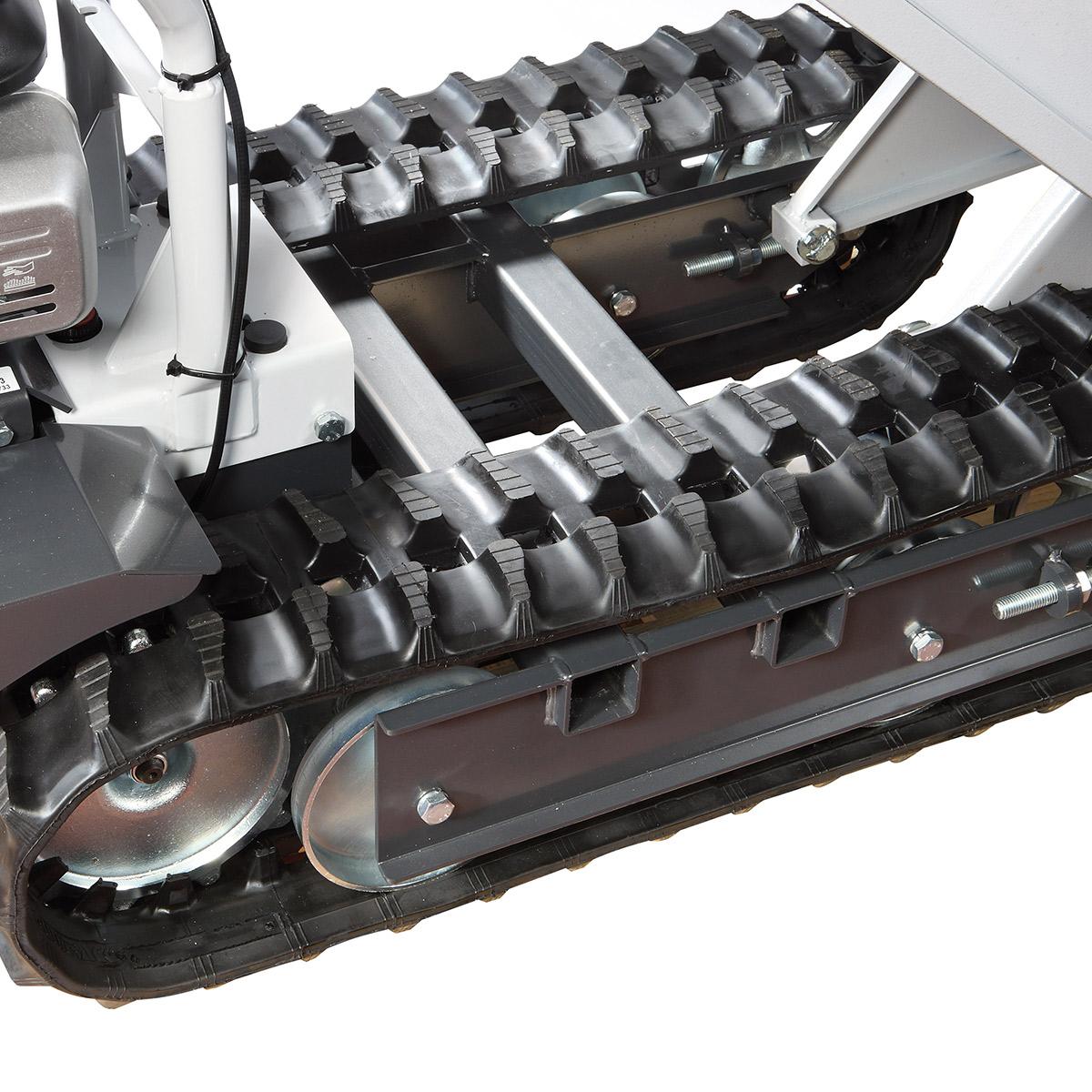

- Crawler contact surface
- 60 cm length - 18 cm width
- Power take-off
- independent at 2100 rpm
- Weight
- 215 kg
Gearbox / Speed (km/h):
| 1 | 1.88 |
| 1R | 1.86 |
| 2 | 3.16 |
| 2R | 3.13 |
| 3 | 4.13 |
| 4 | 7.00 |
Dimensions (mm)
| L1 | 1575 |
| L2 | 915 |
| H1 | 1020 |
| H2 | 900 |
| H3 | 515-725 |
| H4 | 405 |
| H5 | 320 |
| H6 | 70 |
| W1 | 622 |
| W2 | 622 |
| W3 | - |
| W4 | 620 |
| P1 | 785 |
| P2 | 265 |
Data and figures are not binding due to the characteristics of the materials supplied as the products are subject to continuous technical improvements. The data regarding the practical use of the equipment and those of the technical characteristics, as described, may undergo variations without notice.
