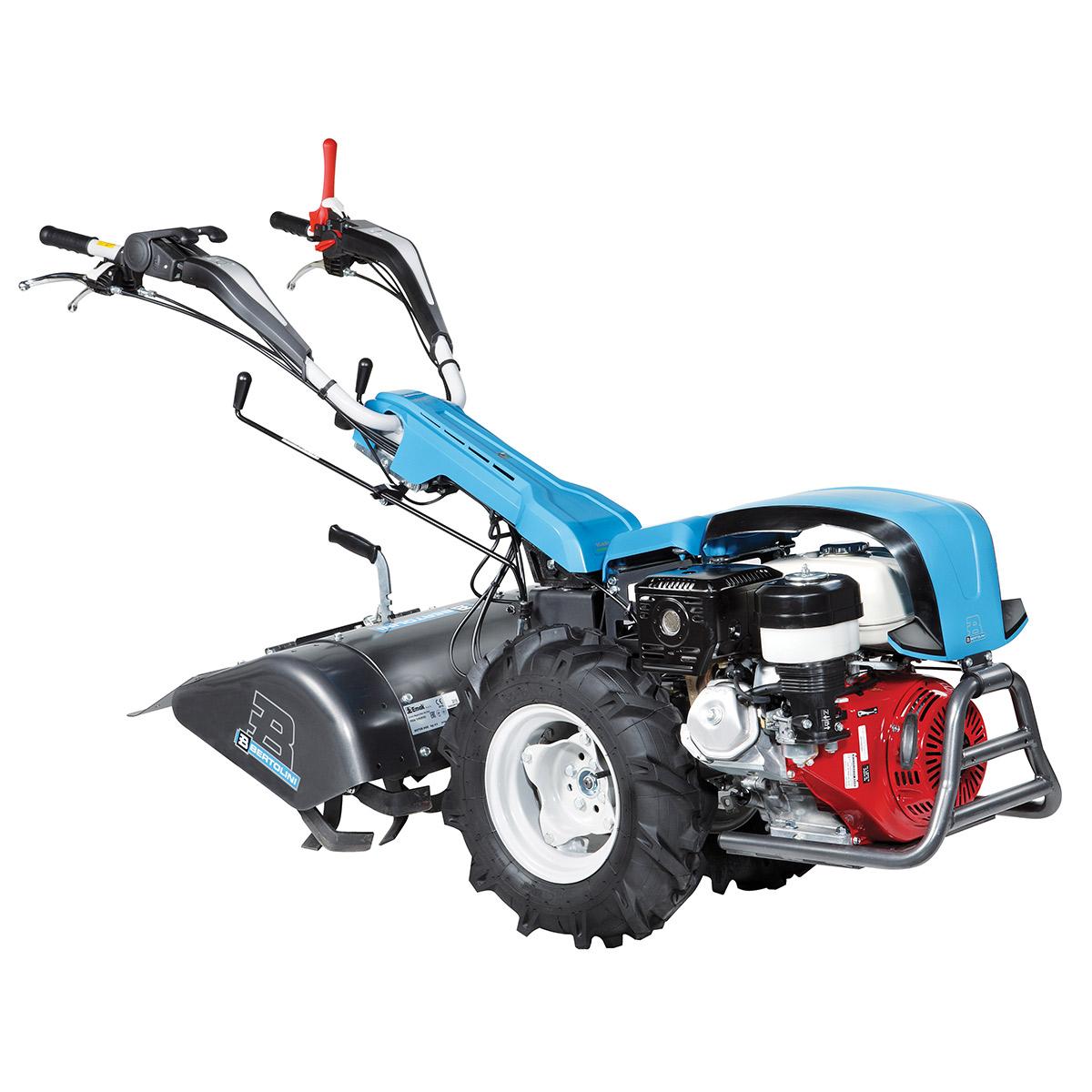

Two wheel tractors for intensive use

413 S

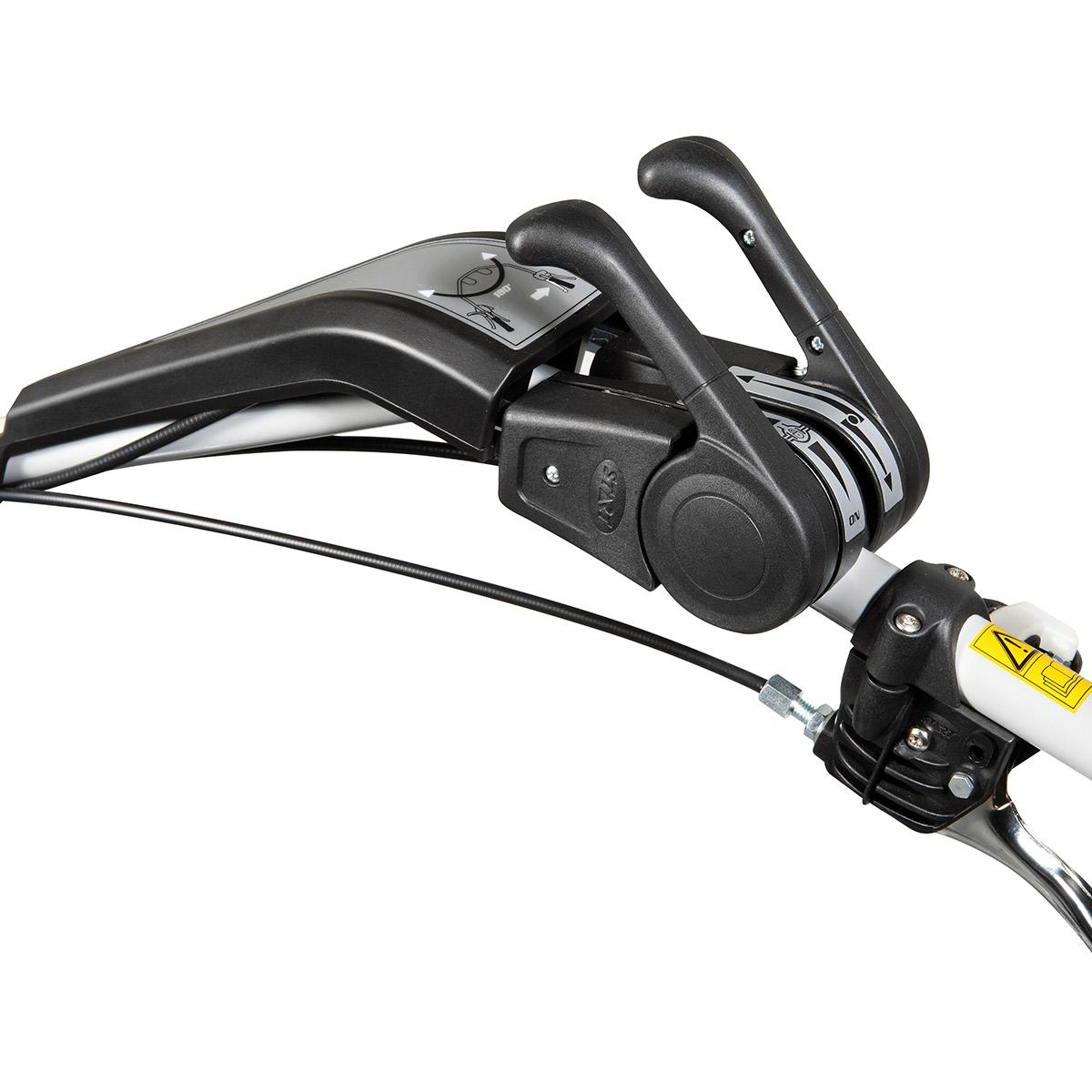

Designed for professional users, with a 3-speed gearbox and differential, this machine, in its various different engine versions, is designed to take the most punishing conditions in its stride. Very versatile and safe, with its EHS system for easy clutch control this machine combines ruggedness and exceptional ease of handling. Individual user requirements can be met with the generous range of accessories available.

  • Gearbox 6-speed (3 forward + 3 reverse)
  • Differential yes
  • Reverse gear yes, with handlebar lever
Read all the features
Power supply Engine Model Displacement Power* Starting Notes Code
GX 270 OHV 270 cm³ 8.4 HP recoil start   68329201EN
GX 340 OHV 389 cm³ 10.7 HP recoil start   68329200EN
CH 395 OHV 277 cm³ 9.5 HP recoil start   68329206EN
15LD350 349 cm³ 7.5 HP recoil start   68329226EN
KM 186 406 cm³ 8.5 HP recoil start   68329207EN
KM 186 406 cm³ 8.5 HP recoil start/electric battery supplied as standard 68329208EN
K 9000 HD 441 cm³ 9.2 HP recoil start/electric battery supplied as standard 68329235EN
15LD440 441 cm³ 10.9 HP recoil start   68329205EN
15LD440 441 cm³ 10.9 HP recoil start/electric battery supplied as standard 68329202EN


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Rivenditore online
Punto vendita
Centro assistenza
Rivenditore online e punto vendita
Punto Vendita e assistenza
Rivenditore online e assistenza
Rivenditore online, punto vendita e assistenza

Technical features

Gearbox
6-speed (3 forward + 3 reverse)
Differential
yes
Reverse gear
yes, with handlebar lever
Transmission
with gears in oil bath
Clutch
dry multidisc
Handlebars
height- and width-adjustable, 180° reversible, with vibration-damping device
Brakes
yes
Power take-off
independent at 973 rpm
Accessories coupling
QuickFit (optional)
Towing hitch
yes
Cowling
yes
Weight (with diesel engine, rotor and wheels)
130 kg
Location
Countryside
EHS ToughTech
WITH TWO WHEEL TRACTOR
Gearbox / Speed (km/h):
6-speed (3 forward + 3 reverse) with 5.00-10'' wheels
11.26
1R1.33
22.64
2R2.79
34.37
3R4.62
Dimensions (mm)
Dimensions (mm)
L11800
L2690
L31110
H11470-630
W1370
W2800-400
WITH CUTTERBAR MOWER
Gearbox / Speed (km/h):
6-speed (3 forward + 3 reverse) with 5.00-10'' wheels
11.33
1R1.26
22.79
2R2.64
34.62
3R4.37
Dimensions (mm)
Dimensions (mm)
L11770
L2900
L3870
H11440-570
W1370
W21420-950

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
