Small/for private use two wheel tractors

400

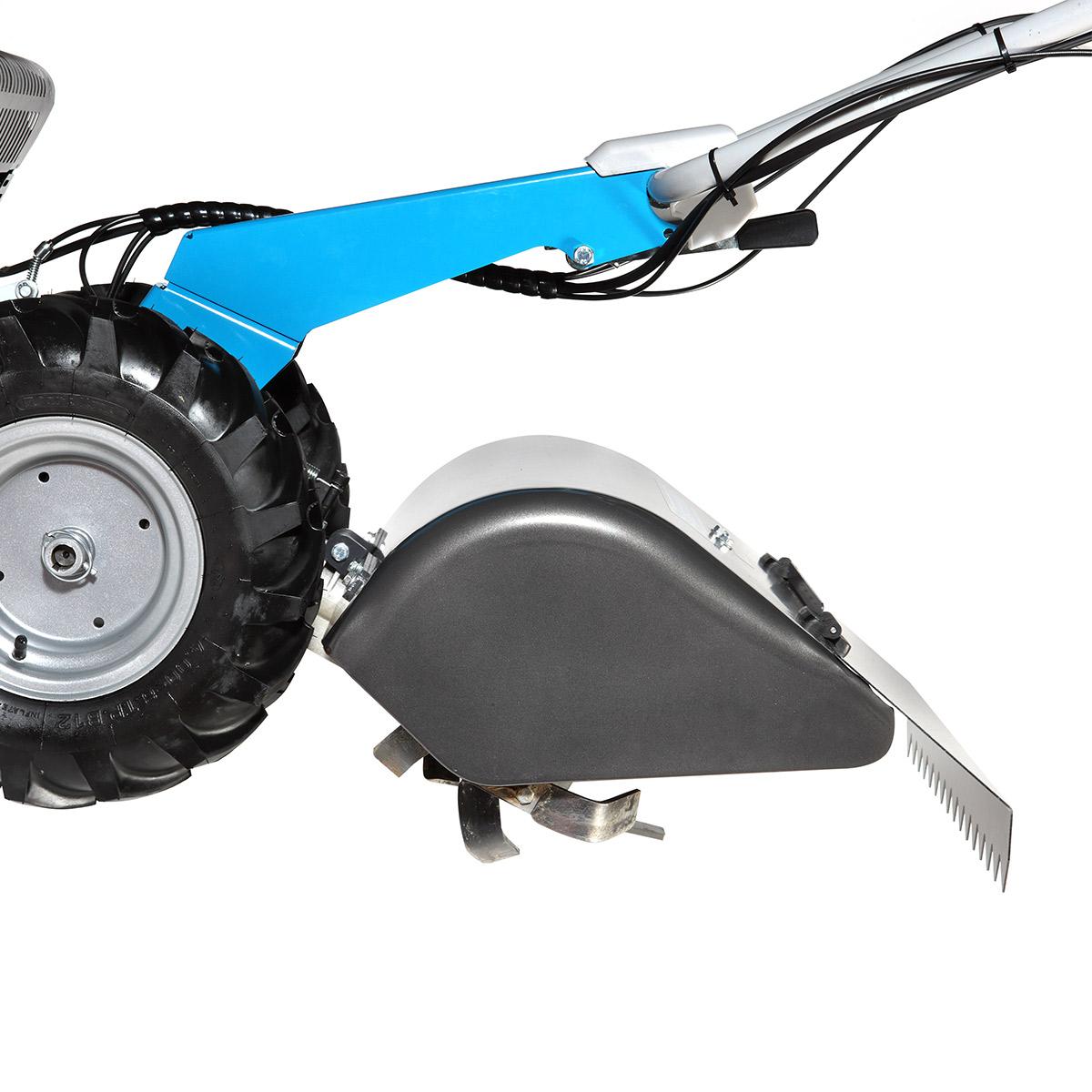

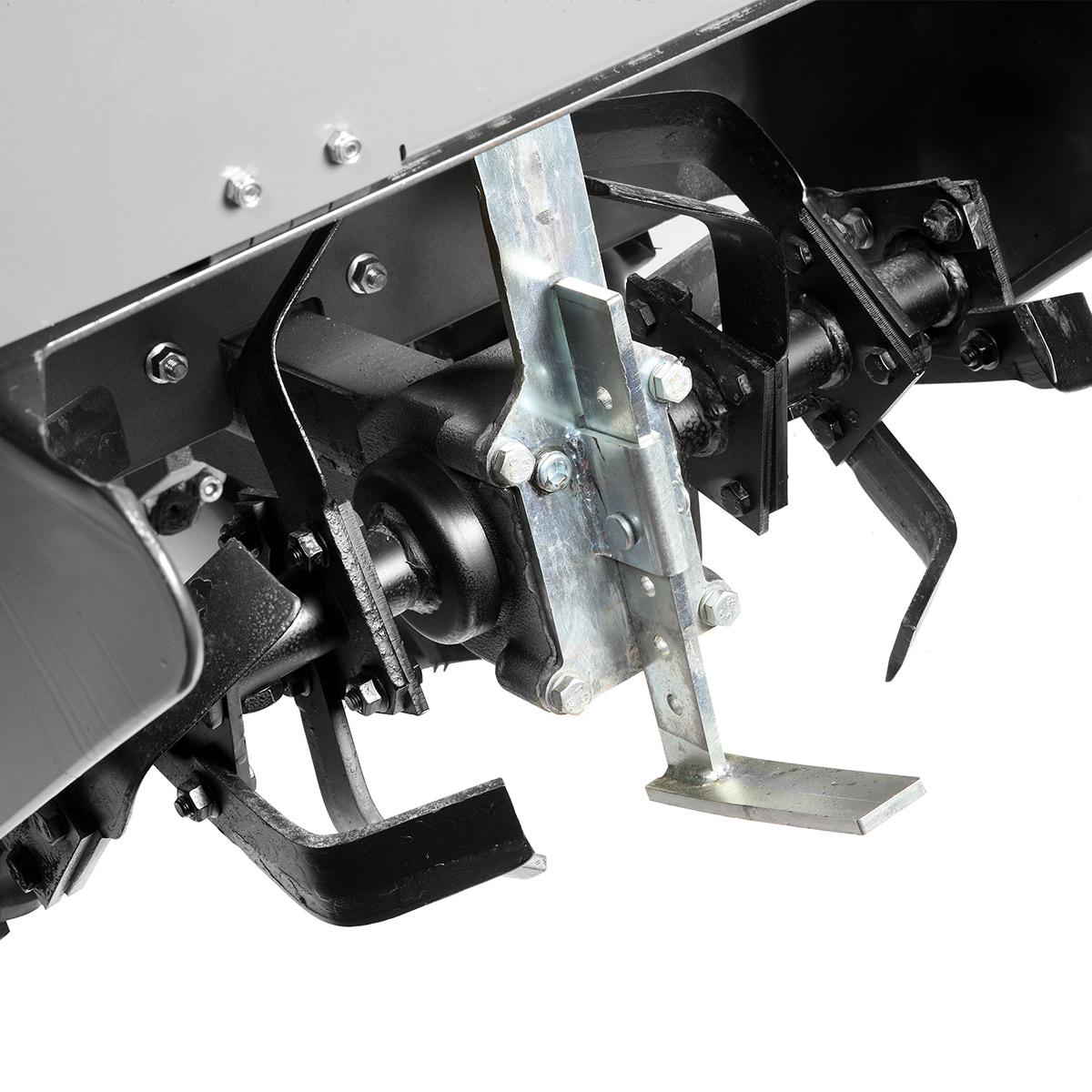

Ideal for home users with small gardens requiring periodic soil preparation for sowing, also in particularly difficult conditions. The rotor turns in the opposite direction to the direction of rotation of the wheels, thus giving the operator the maximum control of the cultivator and significantly reducing transmitted vibration levels.

  • Gearbox 2-speed (1 forward + 1 reverse)
  • Differential no
  • Reverse gear no
Read all the features
Power supply Engine Model Displacement Power* Starting Code
K 700 H OHV 182 cm³ 5.4 HP recoil start 68369001AEN


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Rivenditore online
Punto vendita
Centro assistenza
Rivenditore online e punto vendita
Punto Vendita e assistenza
Rivenditore online e assistenza
Rivenditore online, punto vendita e assistenza

Technical features

Gearbox
2-speed (1 forward + 1 reverse)
Differential
no
Reverse gear
no
Transmission
with gears in oil bath
Clutch
direct engagement
Handlebars
with vertical adjustment
Brakes
no
Power take-off
synchronised with forward travel
Accessories coupling
no
Towing hitch
no
Cowling
no
Weight (with diesel engine, rotor and wheels)
75 kg
HomePlus
WITH TWO WHEEL TRACTOR
Gearbox / Speed (km/h):
2-speed (1 forward + 1 reverse) with 4.00-8'' wheels
11.45
1R2.64
Dimensions (mm)
Dimensions (mm)
L11650
L2540
L31110
H1960
W1430
W2500

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
