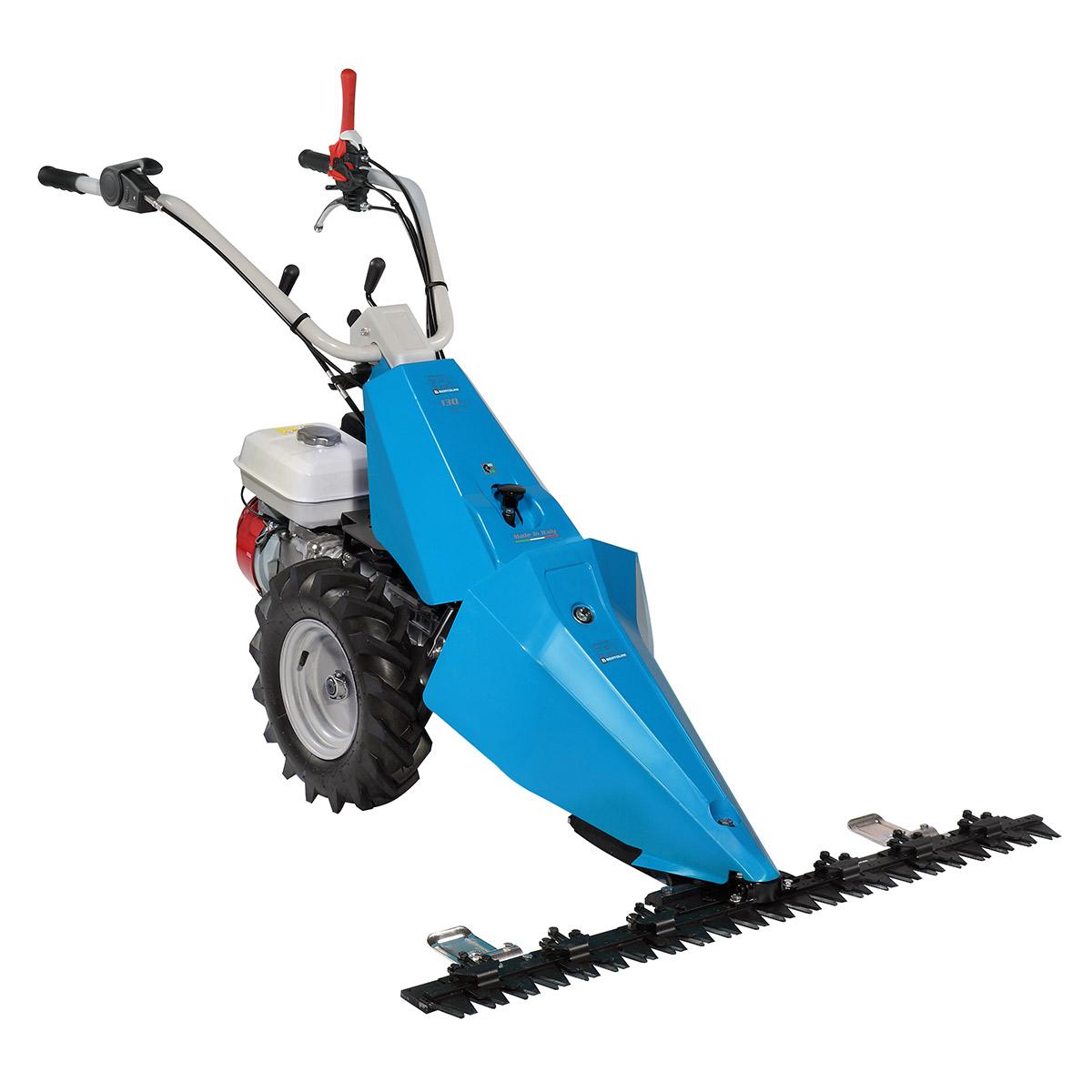

Cutterbar mowers for intensive use

130 S

Designed for small and medium-size plots, this machine very effectively combines professional level reliability and performance with extreme ease of handling, making it ideal for demanding home users and smallholders. The full range of accessories, including rotors, cutterbars, brushes and snowthrowers, are designed to meet the requirements of users seeking a multifunction machine that’s both practical and safe.

  • Gearbox 4-speed (2 forward + 2 reverse)

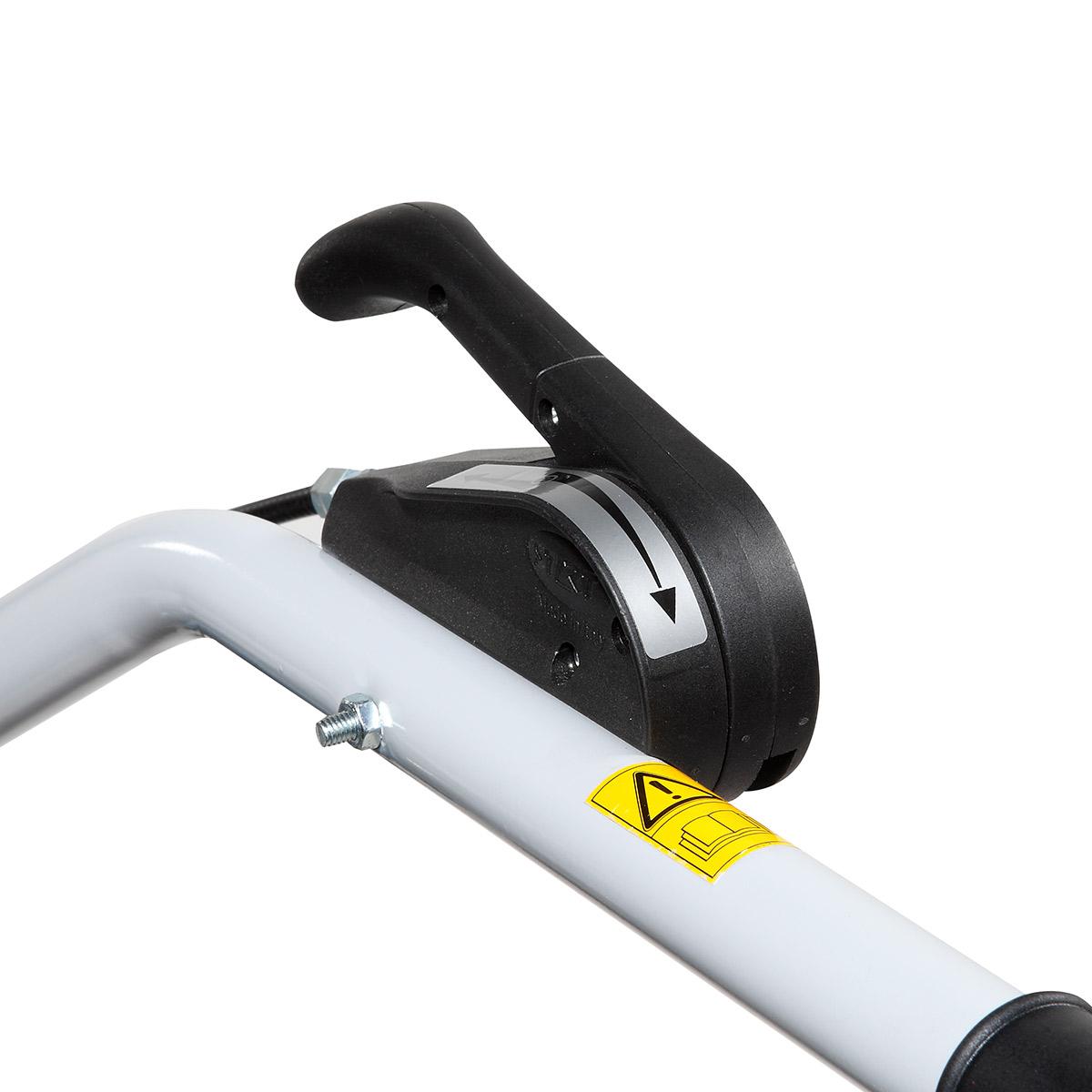

  • Fwd/Rev shuttle yes, control lever on handlebar
  • Transmission with gears in oil bath
Read all the features
Power supply Engine Model Displacement Power* Starting Code
GX 200 OHV 196 cm³ 5.8 HP recoil start 68949002EN
K 800 H OHV  182 cm³ 5.7 HP recoil start 68949001EN


* Engine power data refers to the values declared by each manufacturer. These values are calculated in accordance with specific measurement standards (such as SAE J1940, SAE J1349, ISO 1585) and may be modified without prior notice.

Rivenditore online
Punto vendita
Centro assistenza
Rivenditore online e punto vendita
Punto Vendita e assistenza
Rivenditore online e assistenza
Rivenditore online, punto vendita e assistenza

Technical features

Gearbox
4-speed (2 forward + 2 reverse)
Fwd/Rev shuttle
yes, control lever on handlebar
Transmission
with gears in oil bath
Clutch
dry cone

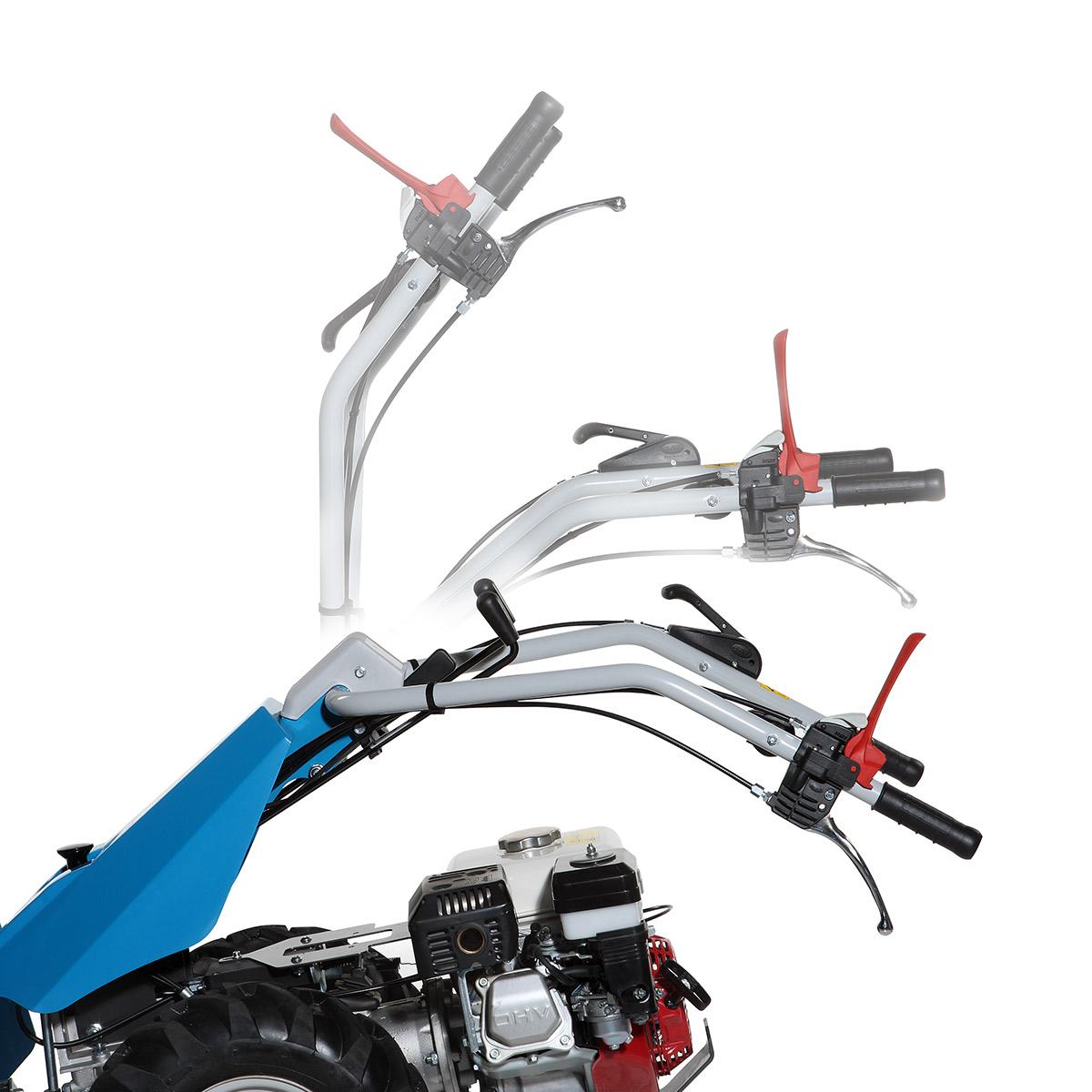

Handlebars
height- and width-adjustable with anti-vibration device
Power take-off
independent at 973 rpm
Accessories coupling
Integral QuickFit supplied as standard
Weight
105 Kg
New_bt EHS ToughTech

Data and illustrations published are not binding where specifications of materials are concerned, given that these will always be subject to technical improvement. Technical specifications given are subject to change without notice, as also are directions relating to general use of the equipment. Certain items are not available in all countries, or are available only on request.
